4 axis 10 amp stepper motor cnc drive & i/o
DTLLC. COM offers the following superior crafted item:

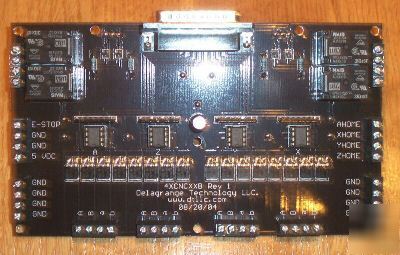

4 AXIS 10 AMP STEPPER MOTOR DRIVE BOARD
This is an excellent price for this board!
* This board has improved heat dissipation and easy DB25 connector computer hook-up
* Built to handle up to 10 amps max per phase per motor
* Unlike some competitors, 10 amps of constant current can pass through each output
* Maximum voltage on the board outputs is 50 volts
* This board requires a 5 volt DC filtered and regulated power supply
* This board can have a different motor on each axis
* This board has 100 volt 25 amp continuous, 100 amp pulsed mosfets with built in diodes to protect against back EMF
* Board design is for unipolar stepper motors only
* A fan blowing on the output hexfets is required if board is running 5 amps or more per phase
* Board is fully compatable with Master 5, Mach 1, Mach 2, or CNC Pro

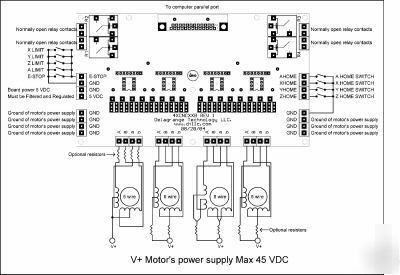

* Has 4 home switches, one for each axis and infinite limit switches, and an e-stop switch
* Has 4 onboard relays that can be turned on and off with the computer software for spindle, coolant pump, drive enable
* Relays rated for 10 amps at 125 vac
* Board guaranteed not to be DOA
* I am the designer and manufacturer of this board. I have extensive knowledge in the CNC area to get you up and running on your system
* PDF manual available right here:
http:// /files/4XCNC10Brev1.pdf
* Please feel free to contact me for any adaptations you may need or for future products you are interested in
