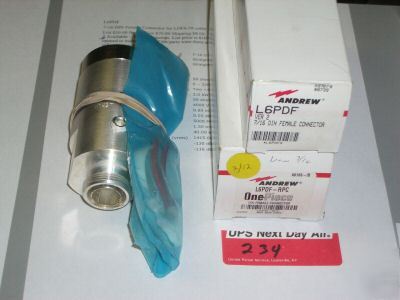

Andrew L6PDF 7-16 din female connector
List price is $101.00. This listing is for 1 unit. Boxes were opened to make sure all of the parts were there and ready to use.
Operating Frequency Band 0 – 3300 MHz
3rd Order IMD Test Method Two +43 dBm Carriers
Average Power 3.0 kW @ 900 MHz
Inner Contact Resistance 0.80 mOhm
Insertion Loss, typical 0.05 dB
Insulation Resistance, minimum 5000 MOhm
Outer Contact Resistance 1.50 mOhm
RF Operating Voltage, maximum (vrms) 1415.00 V
Shielding Effectiveness -130 dB
3rd Order IMD -116 dBm @ 910 MHz
