> Littlefuse nln-30 fuse 30AMP 250V class K5 one-time non

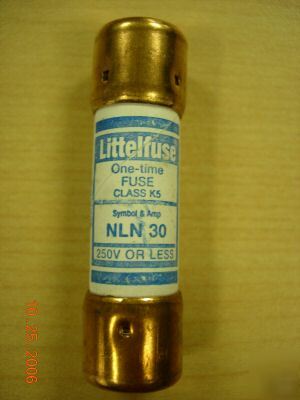

Littlefuse nln-30 fuse 30AMP 250V class K5 one-time non
Littlefuse NLN-30 Fuse 30Amp 250V Class K5 One-Time. The fuse is brand new and has never been used. These are interchangeable with Bussmann NON fuse series.
Technology: POWR-GARD™ Electrical Fuses
NLN Series - UL Class K5 "One-Time" Fuse
NLN series fuses provide low cost protection for general-purpose feeder and branch circuits when available short circuit currents are less than 50,000 amperes. They replace all Class H fuses which have only a 10,000 ampere interrupting rating. They are suitable for use in many residential and smaller commercial and industrial applications.
NLKP series fuses are Canadian “Code†fuses specifically designed to meet Canadian Electrical Code Type P fuse requirements for residential use. They have a 10,000 ampere interrupting rating.
However, to obtain the added benefits of time-delay, current-limitation, and higher interrupting rating, consider the use of POWR-PRO? IDSR Indicatorâ„¢ fuses for circuits between 250 and 600 volts. The user gets all the benefits of time-delay RK5 fuses plus the added benefits of a n indicating fuse that tells when it has opened. Complete information on these fuses may be found in the POWR-PRO? section of this catalog. For circuits up to 250 volts, see FLNR fuses in this section of the catalog.
* General purpose residential and commercial circuits with little or no motor load. Resistive heating loads
* For use in applications where lowest initial cost is the major consideration.
* 50,000 A.I.R., Class K5 — Adequate interrupting capacity for residences and many smaller facilities.
AC: 50,000 amperes rms symmetrical (NLN/NLS)
DC: 20,000 amperes (NLN/NLS 1 – 60A)
50,000 amperes (NLN/NLS 70 – 600A)
NLN/NLS:Standard 248-9, Class K5
CSA Certified (File No: LR29862)**
