Omega acc 104 miniature low mass lab acceleormeter

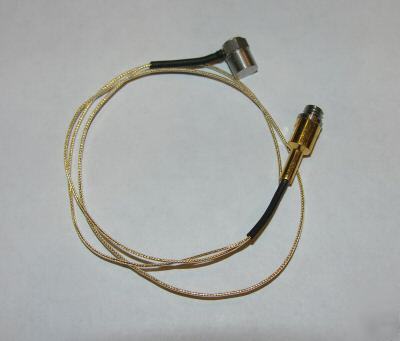

One new Omega Model ACC 104 miniature low mass laboratory accemerometer. OMEGA’s model ACC104 laboratory accelerometer is ideal for use where accurate structural testing is required. The ACC104 weighs only 1.5 grams, and is recommended for applications where low accelerometer weight is critical. It has a 10 mv/g output which can measure vibrations up to 10,000 Hz. The ACC104 has a stainless steel case with a flat surface for adhesive mounting, and an integral side exit coaxial cable.
2 mA nominal @ 18-30 Vdc, constant current Rated Output: 10 mV/g nominal @ 100 Hz Frequency Range: 2 Hz to 10 kHz (up to ±5% rated output shift)
±500 g peak Amplitude Linearity: ±2% up to 500 g peak Temperature Range: -50 to 120°C (-60 to 250°F) Temperature Sensitivity Effect: 0.06% FS/°F
5% of axial max. Maximum g Without Clipping: ±1000 g Mounted Resonance Frequency: >40 kHz Output Impedance: 100 ½ Bias Voltage: 10 V nominal
0.03 g/microstrain nominal Noise Floor (wideband): 0.007 g (rms) Weight: 1.5 (0.05 oz) grams nominal (without cable) Material: 303 stainless steel Dimensions: 5.8 H x 6.35 mm hex base (0.23 x 0.25") Connector: 10-32 male.
