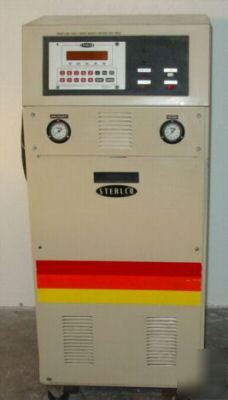

Sterling sterlco MX9412-dx temperature control unit
This listing is for a Sterlco temp control.
* Setup for Water applications
___________________________________________________________________________________
Here is some information from the manual...
The Sterl-Tronic Temperature Control Unit is designed to circulate water through your process and to precisely, automatically, and reliably maintain this water at the selected temperature. The operating range of the Sterl-Tronic unit is from supply water temperature up to 250deg Fahrenheit (120deg Celsius) max. The unit is well suited for use with a city water supply, water from portable or central chillers, towers or with well water.

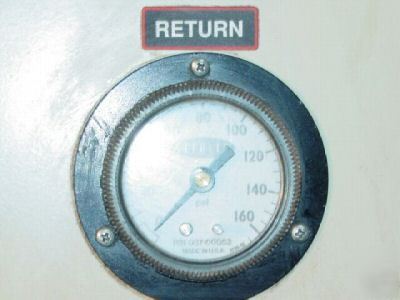

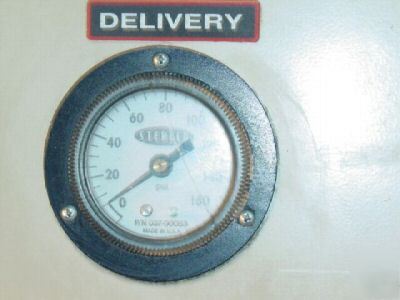

Rapid recirculation of the relatively small amount of water provides close and uniform temperature relation between the delivery and return lines. (This depends on the configuration of your process, and any restrictions within the mold.) This re-circulation, combined with the large immersion heater and cooling capability, gives fast and accurate response to bring the water up to temperature, or to changes in the settings when needed.

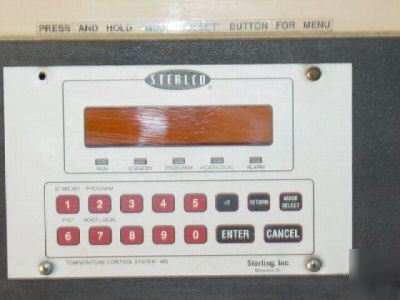

Performance is assured through the matched performance of the unique Sterlco Digital Controllers, and the Sterlco Water Circulating System. The two systems are properly integrated so as to achieve most accurate control, along with efficient use of electrically and water.
The water is heated by the specially designed three-phase low watt density electrical immersion heater, and regulated by the controller. The standard heater has an incolloy sheath for the best heat transfer.
The controller automatically regulates cooling by opening and closing the solenoid valve. For the 9400 Series (direct injection), cooling is accomplished by removing the required amount of warm water from the system. This permits an equal amount of cool plant water to enter the system well ahead of the pump, allowing it to blend with the system water. For water supply temp will govern the min. operating temperature of the unit.
___________________________________________________________________________________
This is used, but in good condition. There are multiple units available - all in very good condition.

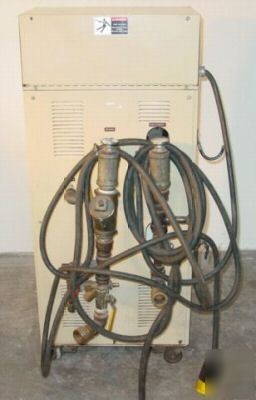

Check out the picture for more information. Feel free to ask any questions. WANT TO REACH ME BY PHONE? Feel free to call me (Trent) toll free @ (***) 972-1346.
