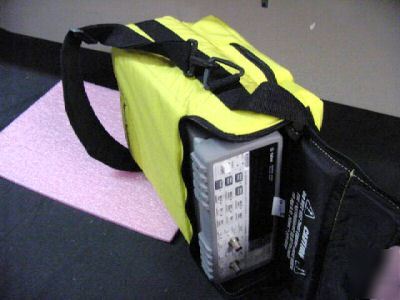

Agilent 53131A 225 mhz frequency counter
Product Details: The HP / Agilent 53131A Universal Frequency Counter is a compact, high performance unit designed for benchtop and system automation. The 53131A has frequency resolution of 10 digits per second, 500 ps time interval resolution and a complete set of test and analysis features.
The 53131A configuration options include two 225 MHz channels, an optional third channel to 3 GHz, 5 GHz, or 12.4 GHz, and one of three available time bases. Standard measurements include: frequency, frequency ratio, time interval, rise/fall time, phase, duty cycle, positive/negative pulse width, totalize, peak voltage, time interval average and time interval delay
(optional 1.5, 3, 5, or 12.4 GHz)
• GPIB interface and IntuiLink
connectivity software standard
RF counters to meet your needs
Agilent Technologies 53131A/132A/
181A high-performance counters
give you fast, precise frequency
measurements at an affordable price.
These counters feature an intuitive
user interface and one-button access
to frequently used functions so you
can make accurate measurements
Real-time digital signal processing
technology is used to analyze data
while simultaneously taking new
readings, speeding measurement
throughput. The technology, developed
for Agilent’s high-end line of
modulation domain analyzers, allows
the counters to gather more data for
each measurement, so you get higherresolution
of the time it takes other counters.
offer built-in statistics and math functions
and simultaneously measure and
track average, min/max and standard
deviation. Automated limit testing
lets you set upper and lower limits for
any measurement. An analog display
mode lets you see at a glance whether
a measurement is within pass/fail
limits. The counters flag out-of-limit
conditions and can generate an output
signal to trigger external devices
when a limit is exceeded. For quick
access to frequently used tests, a
single keystroke recalls up to 20
For computer-controlled systems
applications, each counter includes a
standard GPIB interface with full
SCPI-compatible programmability and
a data transfer rate of up to 200 fully
formatted measurements per second.
The standard RS-232 talk-only interface
data transfer to a computer through

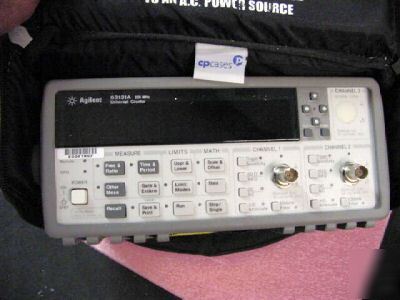

Agilent 53131A Universal Counter
The two-channel 53131A counter
offers 10 digits per second of frequency/
period resolution and a bandwidth
of 225 MHz. Time interval resolution
is specified at 500 ps. An optional
third channel provides frequency
measurements up to 3 GHz, 5 GHz,
or 12.4 GHz. Standard measurements
include frequency, period, ratio, time
interval, pulse width, rise/fall time,
phase angle, duty cycle, totalize, and
Agilent 53132A Universal Counter
For applications requiring higher
resolution, the 53132A offers the
same features and functions as the
53131A, with up to 12 digits/sec frequency/
time interval resolution. In addition,
the 53132A offers advanced arming
modes for time interval measurements.
Optimized for RF applications, the
single-channel 10 digit/s 53181A
measures frequency, period and peak
voltage. A digit-blanking function lets
you easily eliminate unnecessary digits
when you want to read measurements
quickly. For higher-frequency measurements,
channel that provides measurements
up to 1.5 GHz, 3 GHz, 5 GHz, or
12.4 GHz. A self-guided shallow
menu makes this counter exceptionally
