> Agilent N4220A packet analysis probe for pci express

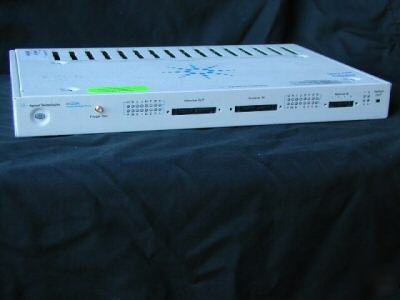

Agilent N4220A packet analysis probe for pci express
Key Specifications * Non-intrusive probing of PCI Express slots and chip-to-chip links (link widths: x16, x8, x4, x2, x1) * Supports PCI Express at full frequency - 2.5+GT/s * Triggering on and decode a PCI Express bus at the packet level * Please refer to the datasheet for more information * Data Sheet 2004-08-05 | FILE FILE 204 KB Product Library Specifications, Application Notes, Configuration Guides, Demos, Manuals, Training & Events... Description The N4220A packet analysis probe for PCI Express adds packet-based trigger and display for a PCI Express bus. With this probe you can capture and view data traveling across PCI Express at full frequency (2.5+GT/s) in high level format for viewing on the 16700 Series logic analysis system. The tool decodes the 8b/10b encoded and scrambled PCI Express data to present a packet-based listing. The N4220A PCI Express analysis probe decodes a number of pre-defined PCI Express packets and also allows for user-defined packet setup. Describe your trigger at the packet level. All PCI Express traffic is time-stamped in the logic analyzer for time-correlation measurements with other system buses such as a µProcessor system bus (FSB), memory interface, Serial ATA,
