Avex sm-220-mp pneumatic shock test system
AVEX SM-220-MP PNEUMATIC SHOCK TESTER
EXCELLENT CONDITION WITH A 14 DAY RIGHT TO RETURN
BASE (FLOOR AREA REQUIRED)........................44" X 50"

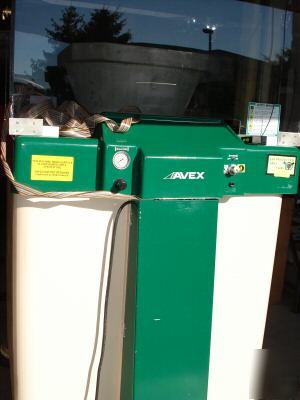

HEIGHT FLOOR TO CONTROL PANEL..................54"
FLOOR TO CARRIAGE DOWN POSITION 67"
FLOOR TO TOP OF SAFETY SHIELD......80"

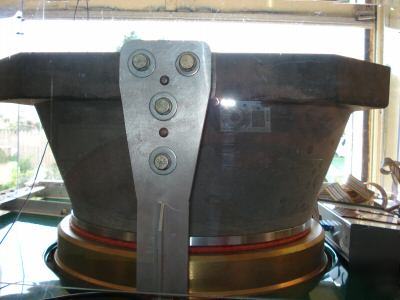

CARRIAGE SURFACE.........................................24" X 24"
WEIGHT.............................................................INSTALLED 7,500 LBS.
CENTER OF GRAVITY OF SPECIMEN MUST BE WIOTHIN 2 INCHES OF CENTER OF CARRIAGE
TERMINAL VELOCITY......330 INCHES PER SECOND (NO LOAD)
260 INCHES PER SECOND (400LB. SPECIMEN)
CYCLING RATE..............UPTO 8 CYCLES PER MINUTE
ELASTIC PADS..................................HALF SINE
LEAD PELLETS.................................TERMINAL PEAK SAWTOOTH
SPECIAL GENERATORS...................SQUARE WAVE
POWER.........................................115VVAC, 60 HZ., SINGLE PHASE
AQIR PRESSURE...........................100-125 PSI FILTERED
AIR REQUIREMENTS MAX..............32 S.C.F.M
CONDITIONS CAN BE PERFORMED WITH REPETITION OF UP TO 100 DROP CYCLES

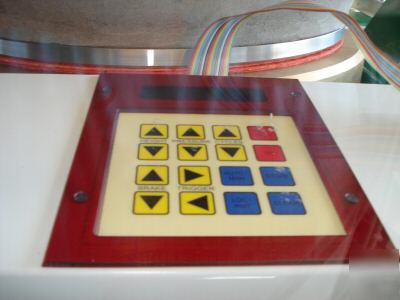

KEY PAD LOCATED ON A REMOTE CONTROL PANEL WITH 20 FEET OF CABLE
