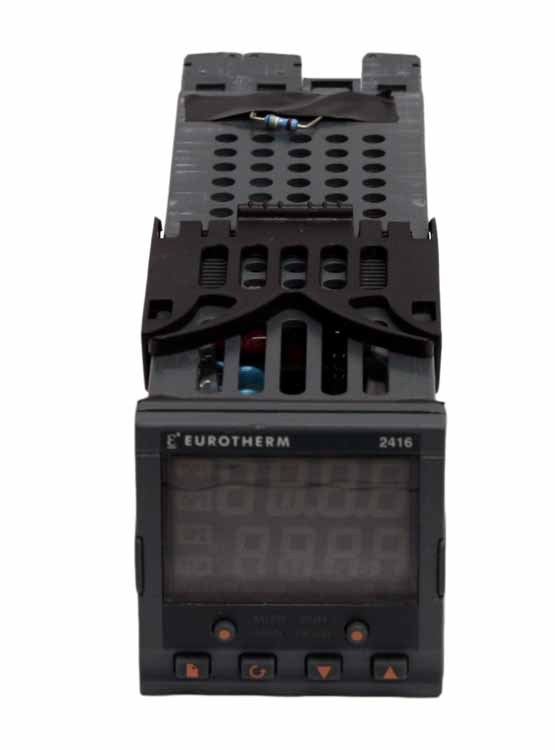

Eurotherm 2416 pid temperature/process controller 240V
Eurotherm 2416 PID Temperature/Process Controller 240V
EUROTHERM 2416 Programmable Temperature and Process Controller
· Single and multi-zone ovens, furnaces, and kilns
· PID and valve positioning control
· Serial communications and PDSIO
The 2416 is a high stability programmable controller with an extensive range of options. Either PID, on/off or motorized valve control can be configured, for electrical and gas heating applications. Dual PID settings, advanced ‘one shot’ and continuously adaptive tuning are available.
The controller employs universal inputs with INSTANT ACCURACY™ and accepts a range of plug-in modules for heating, cooling, analog retransmission, second process value input and remote setpoint. High speed Modbus® and ASCII communications provide easy connection to PLC™ or PC based supervisory systems.
Multi-zone programming can be implemented using PDSIO® retransmission to deliver a master setpoint to one, two, or three client controllers, with holdback from any client if the temperature deviates from the setpoint by more than a set value.
Up to four setpoint programs can be stored with 16 ramp-dwell segments and up to three event outputs.
Eliminate ammeters using PDSIO® current monitoring facility. Heater current may be displayed and open and short circuit faults detected.
TECHNICAL SPECIFICATION (2416)
± 100mV and 0 to 10Vdc (auto ranging)
0.2% of reading, ±1 LSD, ±1°C/F
<1µV for ± 100mV range, <0.2mV for 10Vdc range
Zero drift with ambient temperature
< 0.1µV per °C for ±100mV range, 0.1mV per °C on 10Vdc range
Gain drift with ambient temperature
User adjustable over the full display range
Automatic compensation typically >30 to 1 rejection of ambient temperature change
External references 0, 45 and 50°C
No error for up to 22 ohms balanced in all 3 leads
±100mV, 0 to 20mA or 0 to 10Vdc (All configurable between limits)
Min: 12V, 100mA dc. Max: 2A, 264Vac resistive
Heating, cooling, process output, alarms or program event
Heating, cooling or program event
PDSIO mode 1: Logic heating with load failure alarm
PDSIO mode 2: Logic heating with load/SSR failure alarms and load current display
Heating, cooling or program event
Non-isolated 0 to 20mA (into 600. max) 0 to 10Vdc (both configurable between limits)
Heating, cooling, process output
EIA 485 or EIA 232 at 1200, 2400, 4800, 9600, 19,200 baud
Modbus® or Eurotherm Bisync or SPI
Setpoint input from master PDSIO controller. Holdback to master controller
Master setpoint retransmission to slave PDSIO controllers
PID or PI with overshoot inhibition, PD, PI, P only or On/Off
Heating, cooling or process output
Bumpless transfer or forced manual output
0.01 to 99.99 degrees or display units per second, minute or hour
Linear; Water (non-linear); Fan (minimum on time), Oil and proportional only
Automatic calculation of PID and overshoot inhibition parameters
Continuous assessment of the PID values
Automatic calculation of manual reset value when using PD control
Full scale high or low. Deviation high, low, or band. Rate of change
Latching or non-latching. Normal or blocking action
Up to four process alarms can be combined onto a single output
One or four programs of 16 segments each
Up to two – relay, logic or triac
Hours, Minutes or Seconds ( 0.1 to 999.9 )
Hours, Minutes or Seconds ( 0.0 to 999.9 )
Per Program or per Segment ( 0.0 to 999.9 )
Dwell, Reset or Set output level
Up to eight – relay, logic or triac
Dual, 4 digit x 7 segment high intensity LED
85 to 264Vac, 48 to 62Hz. or optionally 20 to 29V ac or dc
Operating: 0 to 55°C, RH: 5 to 95% non-condensing. Storage: -10 to 70°C
Meets generic emissions standard EN50081-2 for industrial environments compatibility
Meets general immunity requirements of EN50082-2(95) for industrial environments
EN61010, installation category 2. (voltage transients must not exceed 2.5kV)
Electrically conductive pollution must be excluded from the cabinet in which this controller is mounted. This product is not suitable for use above 2000m or in corrosive or explosive atmospheres without further protection.
If you require more detailed specifications, please contact the manufacturer for technical support.
