New atc 324C03000E3X04X cam program controller

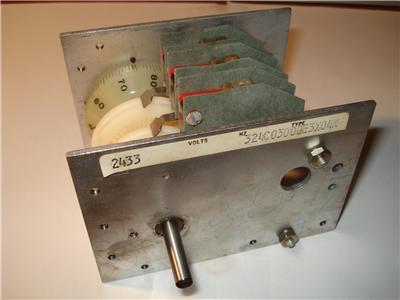

NEW ATC 324C03000E3X04X Cam Program Controller
Model number break-down explained below (highlighted in red):
Model Number > 324C03000E3X04X
Repeat Cycle/Stop Cycle Dynamic Brake1
Eternal Drive by user, no motor
1 Motor (add $12 for 15 RPM motor
Type Q. $2 for motors J thru N)
2 motors (add $5 for motor codes J thru N)
1/4" dia. X 1" long shaft extension right end (Units with one or no motor)
1/4" dia. X 1" long shaft extension left end (Units with one or no motor)
1/4" dia. X 1" long shaft extension both ends (Motorless units only)
Screw terminal adapters mounted on all switches (Not UL listed with these)
Standard (other than cam settings)
CAMS– Factory setting cams to 0.25% tolerance 50% cams allow 12 to 52% adjustment of switch actuation.2, 3, or 4 cuts equally spaced.Have limited adjustability. (Does not include 50% cams with multiple cuts) Multiple cuts, unequally spaced Multiple cuts — over 4 Specially cut or specially molded cams
LUGS – Bag of 50 push-on terminal lugs uninsulated Part No. 2300-260-59-00
BRAKE – Diode brake assembly Part. No. 2300-260-56-00
If you have any other questions, please email me and I will write you back promptly.
