New pro-face PL6931-T42 industrial computer pl-X930

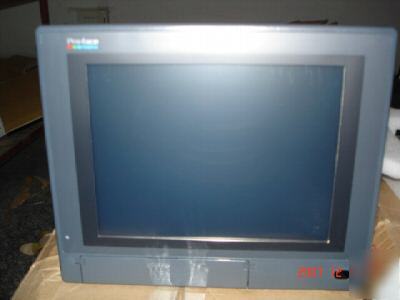

NEW PRO-FACE PL6931-T42 INDUSTRIAL PERSONAL COMPUTER

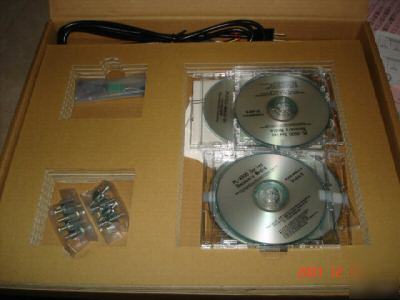

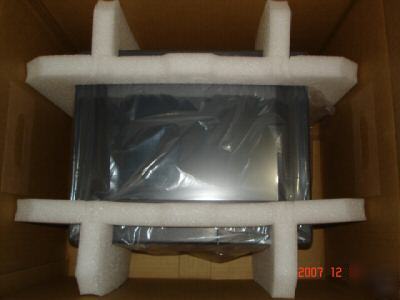

PROFACE PL-X930 (NEW WITH BOX)
PL-6930T/PL-6931T Specifications
Windows® 2000/ Windows® XP/ Windows® XP Embedded
DDR DRAM 256MB - 1GB (DIMM x 1slot)*2
Phoenix First BIOS Embedded Pro
1MB (Pentium® M), 512KB (Celeron® M)
1MB (Pentium® M), 512KB (Celeron® M)
COM2 D-Sub 9-pin plug Male(5V/RI switching available)
COM3 D-Sub 9-pin plug Male(5V/RI switching available)
USB2.0 (Support for HI SPEED 480M bps)
Number of ports: Front (1) / Side (2)
5 DATA IN, 4 DATA OUT (Including Reset Input)
IEEE802.3 10BASE-T/100BASE-TX Auto exchange SIDE x 2
Speaker out, Line-input, MIC-input
HD SLOT 2 SLOT (Primary, Secondary)
Corresponding to CARD BUS (Excluding ZOOMED VIDEO,and SOUND functions)
*1 CPU can be selected with Built-to-order.
Rated Voltage(Rated Frequency)
Shorter than 1cycle (however, pause occurrences must be more than 1 second apart)
AC 1500V at 20mA for 1 minute (between live wire and grounding (FG) terminal)
Greater than 10Mohm at DC 500V (between live wire and grounding (FG) terminal)
Using Fan 5°c to 50°c (with HDD attached)
Fanless 5°c to 40°c (with HDD attached)
Using Fan 5°c to 50°c (with HDD attached)
Fanless 5°c to 40°c (with HDD attached)
10% RH to 85% RH (no condensation)
10% RH to 85% RH (no condensation)
Noise Voltage: 1500Vp-p Pulse Duration: 50ns, 500ns, 1µs Rise Time: 1ns
Protective grounding: D-Type grounding, Function grounding: D-Type grounding
Natural Air Circulation (Fanless)
Natural Air Circulation (Fanless)
Electrostatic Discharge Immunity
4.9m/s2 : 10 to 25Hz applied in X, Y, and Z directions for 30 minutes each (4.9m/s² when using HDD unit,19.6m/s² when not using HDD)
Equivalent to IP65f (JEM1030)*2
W346mm [13.62 in.] x H287mm [11.30 in.] x D170mm[6.69 in.]
W346mm [13.62 in.] x H287mm [11.30 in.] x D123mm[4.84 in.]
Dimensions Including Full-sized Cover
W393mm [15.47 in.] x H287mm [11.30 in.] x D170mm[6.69 in.]
W393mm [15.47 in.] x H287mm [11.30 in.] x D123mm[4.84 in.]
*1 Operating temperature refers to temperature inside monting enclosure.T42 (Type with a fan) doesn't work without a fan.
*2 Meets IP65f testing requirements, however, operation is not guaranteed in every environment.
*3 Prior to installing a full-sized board and the PL's full-sized cover (PL-FC200/PL-FC210), be sure that the PL is installed in its attachment panel/cabinet.
Due to dimension differences, a full sized expansion board and PL's full-sized cover cannot be attached prior to installing the PL into a panel.
