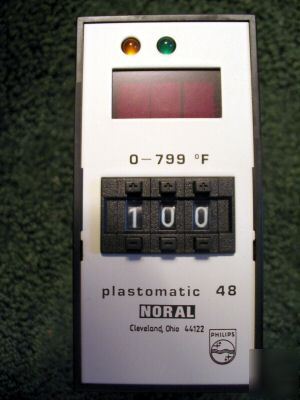

Philips plastomatic 48 temperature controller
Philips Temperature Controller
Uses a "J" type Thermocouple (Fe-CuNi)
Three-point controller with Limit-comparator (Opto coupler output) for Deviation Alarm.
Compact front dimensions of 48 x 96 mm. Depth behind panel only 130 mm.
Exactly reproducible digital set-value adjustment.
Full Specification Sheets Available. Email if you wish to have spec. sheets.
The Plastomatic 48 with its compact dimensions is well suited for use on plastics processing machinery.
The process temperature is measured with a thermocouple (J) which is connected to the Plastomatic 48 directly or via a compensating lead. Temperature compensation and TC break monitoring are provided as standard. Set-value is adjusted using a 3-digit selector switch with an exactly reproducible resolution of 1 deg C or 1 deg F.
ALSO AVAILABLE: Plastomatic 48 with LED trend indicator and Plastomatic 48 with deviation indicator.
Please feel free to email if you have any questions.
We have a few of this Model are available. All New, In Box, Never Used.
