Quackenbush 1.6 hp positive feed pneumatic / air drill

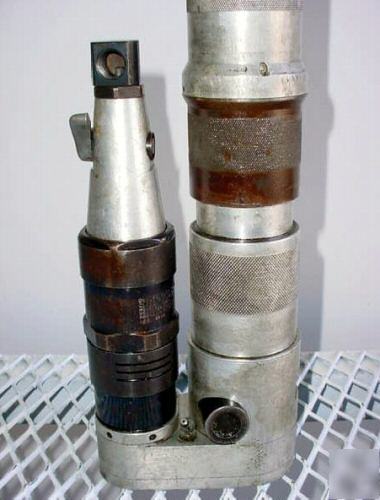

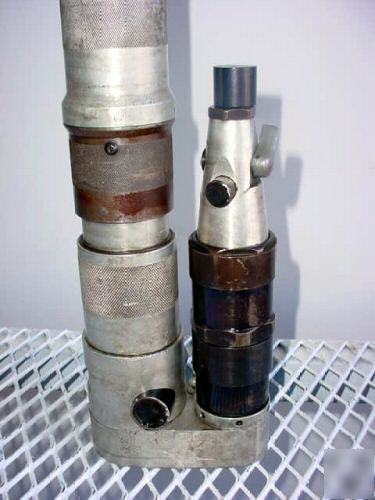

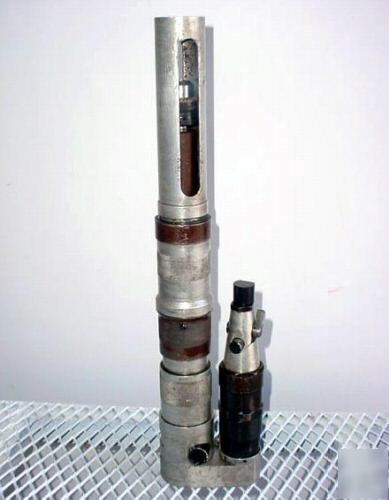

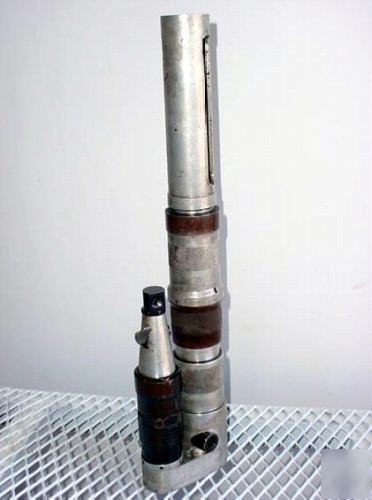

This is a Mobil Machining Air Drill by Quackenbush Precision Drilling Equipment. Positive feed helps eliminate errors caused by operator alignment and pressure variations. Very Powerful and commonly used in the aircraft industry. Drill is usually jigged to the workpiece with use of a drill type bushing.

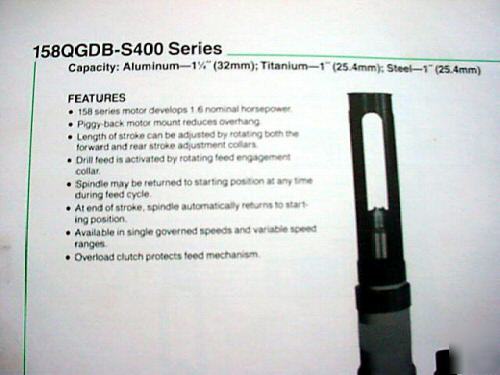

* 158 Series Motor Develops 1.6 HP
* Capacity: 1-1/4" Dia. in Aluminum / 1" in Titanium / 1" in Steel
* Feed Rate / We believe it is .004" IPR
* Feed Rate Engaged by Turning Feed Engagement Collar
* Feed Can Be Dis-Engaged Any Time During Feed Cycle
* Positive Feed helps eliminate break through burr on back of part
* Length of Stroke can be Adjusted by Rotating the Forward and Rear Stroke Adjustment Collar
* #3 Morse Taper Drill Adapter
* Overload Clutch Protects Feed Mechanism
* Includes 0-1/2" Jacobs Chuck
* 1/2" NPT Inlet / 3/4 " Minimum hose size required
See Quackenbush Drills @ http:// /brands/quackenbush/
We have several of these type drills available in dual (3 HP) and single motor (4HP) w/ different RPM/Feed Settings. Call for information.
