Tr-5001 nema 4X panel pc with 15" lcd touch screen

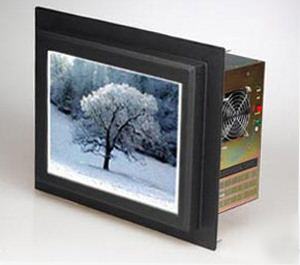

TR-5001 NEMA 4X Panel Mount PC with 15" LCD Touch Screen
This panel mount PC offers 15" bright (250 cd/m
RAID1 ATA100 controller for redundant operation.
*Slim DVD-ROM/CD-RW drive option is available.
Standard features include 10/100 Mbs ethernet port, 2 serial ports and printer port.
TR-5001 is compatible with all Microsoft Windows and LINUX operating systems.
NEMA 4 Aluminum black front panel
Aluminum black baked powder epoxy panel
Processor: Socket 478 for Intel Pentium 4 or
Celeron up to 3.6GHz with 800 MHz FSB
Max capacity: Up to 2GB DDR with ECC
Six slot backplane with one PICMG CPU card
2 x 3.5" HDD (RAID1 OK) or Flash Solid State Disk
or 1 x 5.25 Slim DVD-ROM /CD-RW
VGA: Intel Extreme Graphics with 266MHz VGA core,
1 x Intel Pro 10/100+ Mbps Ethernet
SSD: Supports DiskOnChip up to 1GB
Air Flow: Optimized air flow with 62 CFM (card
cage) and 43 CFM (power supply) quality NIDEC fans
2 x USB 2.0 (2 additional USB 2.0 available on request)
LINUX and all versions of Microsoft Windows
QNX version with ATI RADEON SVGA is also available
Input voltage: 100~240VAC @ 47/63Hz
Safety: UL/cUL/TUV/FCC/CE approved
System Monitor features include processor temperature,
system temperature & DC power voltages
Chassis Colors: Black, OEM color optional
W. 17.25" x H. 14.25" x D. 6.4" (D. 6.25" behind front panel)
N.W. 25.0 lbs, G.W. 30.0 lbs, CUFT. 6
