> Wedeco ideal horizons uv filtration unit 250 angstroms

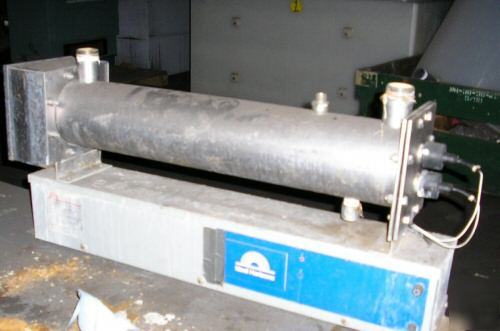

Wedeco ideal horizons uv filtration unit 250 angstroms
Wedeco Ideal Horizons UV Filtration Unit 250 Angst
Ideal Horizons Ultra Violet Filtration Unit 250 Angstroms
Machine Condition: Used/Very Good
Mechanical: Max Pressure 150 PSI; 316L Stainless Steel Vessel; Plastic Head Piece;
Electropolished (exterior); Minimum 2B Surface Finish (interior); Flow Balance System; Ground Stud;
Electrical: 120VAC 60 HZ; NEMA 4 Painted Steel; 10 ft Lamp Cable; Two Tier Alarm Outputs**; Reset Switch; Solenoid Valve
Output Contact; Type XLR Lo-Hi lamps with electronic ballasts; On/Off/Remote Selector Switch; Digital Display showing: Lamp Life Remaining (Days), % UV Intensity (opt Sensor required) and Alarm Conditions; Inhibit Contact (not available if Thermal Switch is used)
We could supply pumps and tanks if interested. Unit is in excellent condition and ready to get plugged in and work. Call for a quote and application sizing.
The following is taken from the Wedeco Ideal Horizons Web site listing for current models. Ours is similar and older:
Our equipment is designed for use in water purification systems to reduce the Total Organic Carbon content in the final product and/or reclaim water. To bring the effluent to acceptable specifications, the ultraviolet oxidizer exposes it to a combination of both the 185nm and 254nm wave lengths. The 185nm light reacts directly with organic carbon compounds to break them down by photo-oxidation and to convert them primarily to CO2. The 254 nanometer (nm) wavelength destroys or inactivates DNA (deoxyribonucleic acid, which is altered as it absorbs the ultraviolet radiation) Ideal Horizons designs TOC reduction units to provide minimum dosages ranging from 90,000 - 400,000 microwatt seconds per square centimeter and above—at the end of lamp life (EOL).
Twenty-five years of UV disinfection experience is packed into the GLI Series. Designed for superior disinfection performance by providing a minimum 30,000 µWsec/cm2 UV dose at rated flow, WEDECO engineers developed the GLI water treatment systems from the ground up by focusing on the three critical elements for UV system performance; The UV lamp, the power supply/controls, and the engineered vessel.
The performance of the GLI is enhanced by a state-of-the-art electronic smart ballast and microprocessor control system. Designed to withstand rugged industrial environments, GLI electronics are housed in a compact, UL 508A Listed Type 4 painted steel enclosure for mounting up to 35 feet away from the vessel. The GLI Series also offers the user substantial safety and warning features through its clean combination of a three character digital display and LED indicator lamps.
Display, Warning and Control Features:
Digital lamp life remaining indication (days), Operating status (Normal or one of two alarms - low & high priority) Digital lamp intensity indication (%) (See Note 1 below) 4-20 mA signal for remote intensity monitoring (See Note 1 below)
Note 1: These features are only available with optional UV sensor.
Intensity distribution and vessel hydraulics are critical to reliable UV dose delivery. GLI vessels are computer optimized (CFD) to ensure uniform UV intensity distribution, and engineered flow baffles within each vessel ensure proper hydraulic residence time distribution (HRT) for reliable dose delivery. GLI Series vessels are manufactured in our Charlotte, NC facility of high quality, heavy gauge minimum 304L stainless steel with a 2B surface finish and electropolished exterior. Standard GLI vessels can be mounted vertically or horizontally and include industry standard NPT inlet/outlet fittings for simplified pipe connections
Freight costs to be quoted at time of sale from zip code 06787.
All freight costs to be paid by the purchaser.
