58" VERTICAL MILL, Bridgeport SERIES II Vari-
58" VERTICAL MILL, Bridgeport SERIES II Vari-

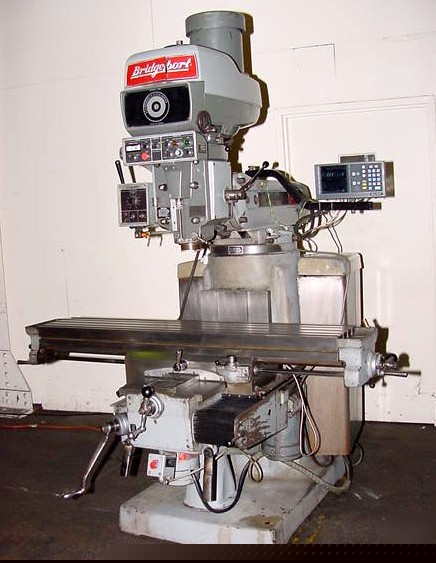

11" X 58" BRIDGEPORT VERTICAL MILL
MODEL: SERIES II, S/N: 2974, YEAR: 1980's
WORKING SURFACE OF TABLE ................. 11" X 58"
- LONGITUDINAL ........................... 30"
- CROSS .................................. 15"
VERTICAL (KNEE) .......................... 16"
RAM TRAVEL ............................... 16"
MAXIMUM THROAT DISTANCE .................. 26-5/8"
MINIMUM THROAT DISTANCE .................. 10-5/8"
MAXIMUM TABLE LOAD CAPACITY .............. 1,500 LBS.
SPINDLE SPEEDS, TWO RANGES ............... 50 TO 450 RPM
INFINITELY VARIABLE ...................... 450 TO 3500 RPM
QUILL TRAVEL ............................. 5"
QUILL POWER FEED RANGE ................... .6 TO 2.5 IPM
- LONGITUDINAL ........................... 3/8 TO 24 IPM
- CROSS .................................. 3/16 TO 12 IPM
- LONGITUDINAL AND CROSS ................. 24 IPM
- VERTICAL (KNEE) ........................ 12 IPM
TAPER IN SPINDLE ......................... #40 QUICK CHANGE
- LEFT TO RIGHT .......................... 90 DEG.
- FRONT TO BACK .......................... 30 DEG.
RAM SWIVELS .............................. 360 DEG.
APPROXIMATE WEIGHT ....................... 5,500 LBS.
- ACU-RITE TWO AXIS DIGITAL READOUT
- #40 ERICKSON QUICK SWITCH SPINDLE
- FEEDS ON QUILL & KNEE & TABLE
- AUTOMATIC LUBRICATION SYSTEM
*INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE*
Machine Location: HARRISON, NJ
