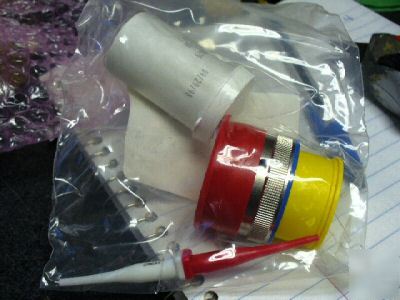

Connector,plug,electrical
BODY STYLE - 7A STRAIGHT SHAPE, INTERNAL COUPLING
OVERALL LENGTH - 1.420 INCHES MAXIMUM
OVERALL DIAMETER - 1.510 INCHES MAXIMUM
CONNECTOR LOCKING METHOD - BAYONET LATCH
THREADED DEVICE TYPE - BACK SHELL
THREAD SERIES DESIGNATOR - UNEF
NOMINAL THREAD SIZE - 1.188 INCHES
NOMINAL THREAD LENGTH - 0.290 INCHES
SHELL MATERIAL DOCUMENT AND CLASSIFICATION - QQ-A-367 FED SPEC SINGLE MATERIAL RESPONSE
POLARIZATION METHOD - KEYWAY OR MULTIPLE KEYWAY
CONTACT POSITION ARRANGEMENT STYLE - BTAE 41 NUMBER 20 SINGLE MATING END
INCLUDED CONTACT QUANTITY - 41 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT - GOLD SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - MIL-G-45204,TY 2,CL 1 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION - MOISTURE RESISTANT AND SALT WATER RESISTANT AND VIBRATION RESISTANT
TEST DATA DOCUMENT - 81349-MIL-C-83723 SPECIFICATION
SPECIFICATION/STANDARD DATA - 81349-MIL-C-83723/75 GOVERNMENT SPECIFICATION
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MILC83723-75
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - M83723/75R2041N
