Copley controls dc motor servo torque amplifier 800-262
DC Motor Driver - Torque/Velocity Amplifier,
1. Condition: in Excellent Working and Used Cosmetic Conditions!!
2. Quantity: one controller as shown!
3. Description: this is a nice DC motor driver from Copley Controls, model 800-262. The unit has some cosmetic marks on casing from a previous use and storage, which doesn't affect its performance. The unit was made in the U.S.A.
Built using surface-mount technology, these amplifiers offer plug and play operation in a very small package. All models take industry standard ±10V control signals as input, and operate motors in torque mode, or velocity mode.
An internal solderless socket holds 17 components that configure the various gain and current limit settings to customize the amplifiers for a wide range of loads and applications.
Header components permit compensation over a wide range of load inductances to maximize bandwidth with different motors. Individual peak and continuous current limits allow high acceleration without sacrificing protection against continuous overloads. Peak current time limit is settable to match amplifier to motor thermal or commutation
All models are protected against output short circuits ( output to output and output to ground ) and heatplate overtemperature. With the /Reset input open, output shorts or heatplate overtemperature will latch off the amplifier until power is cycled off & on, or until the /Reset input is grounded.
For self-reset from such conditions, wire /Reset to ground and the amplifier will reset every 200ms. A bicolor led speeds diagnostics during set-up, or for fault isolation after
• Underwriters Laboratories Recognized Component to UL 508C
• Component socket configures amp completely
• Separate current limits: Continuous, peak, and peak-time
• No integrator windup when disabled
Short-circuits from output to output, output to and Over/under voltage Over temperature Self-reset or latch-off modes
• Surface mount technology construction, lower part count.
• Automated assembly machinery

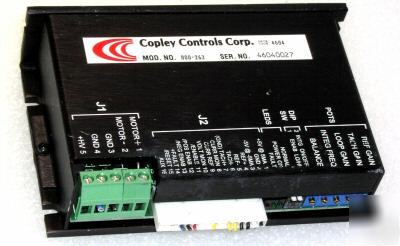

Pictures below represent the actual item!
