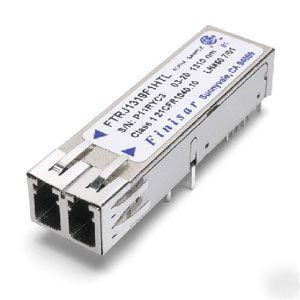

Finisar long-wavelength sff transceiver FTRJ1319F1MTL
Finisar Corporation June 14, 2004 Rev. G Page 1
2 Gigabit Long-Wavelength 2x5 Pin SFF Transceiver
Up to 2.125Gb/s bi-directional data links
Standard 2x5 pin SFF footprint
1310nm Fabry-Perot laser transmitter
Metal enclosure, for lower EMI
Industrial operating temperature range: -40°C to 85°C
1.25 Gb/s 1000Base-LX Ethernet
Dual Rate 1.063 / 2.125 Gb/s Fibre Channel
Finisar’s FTRJ1319F1xTL Small Form Factor (SFF) transceivers comply with the 2x5
standard package defined by the Small Form Factor Multi-Sourcing Agreement (MSA)
They are simultaneously compatible with Gigabit Ethernet as specified in IEEE Draft
2 and Fibre Channel FC-PH, PH2, PH33 and FC-PI 13.04.
G) 2 Grounding Pins, Short EMI shield
6 Grounding Pins, Short EMI shield
2 Grounding Pins, Long EMI shield
6 Grounding Pins, Long EMI shield
Pin Symbol Name/Description Logic Family
MS MS Mounting Studs are for mechanical attachment.
Chassis ground is internally isolated from circuit ground.
Connection to chassis ground is recommended.
EER Receiver Ground (Common with Transmitter Ground) NA
3 SD Signal Detect. Logic 1 indicates normal operation. LVTTL
4 RD- Receiver Inverted DATA out. AC Coupled. See Rx spec.
5 RD+ Receiver Non-inverted DATA out. AC Coupled See Rx spec.
CCT Transmitter Power Supply NA
EET Transmitter Ground (Common with Receiver Ground) NA
9 TD+ Transmitter Non-Inverted DATA in. AC Coupled. See Tx spec
10 TD- Transmitter Inverted DATA in. AC Coupled. See Tx spec.
Parameter Symbol Min Typ Max Unit Ref.
Maximum Supply Voltage Vcc 0.5 5.0 V
Lead Soldering Temperature/Time 260/10 C/s
http://www.kogent.co.jp/product/finisar/pdf/ftrj1319f1xtl_spec_rev_d.pdf
