550 ton, 64.83 oz. husky injection molding machine '90

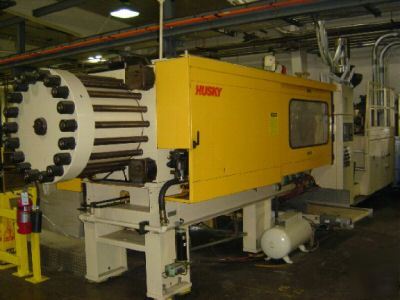

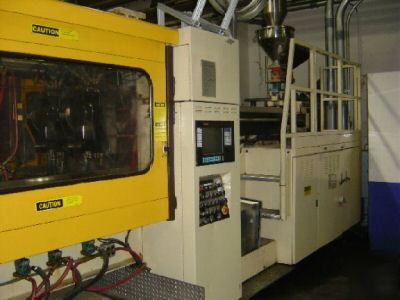

550 Ton, 64.83 Oz. Husky Injection Molding Machine
Model: X500RS New: 1990
* * * (2) Sister Machines Available!! * * *
Machines Running in Modern Medical Facility!!
Platen Size ........................ 43.50" x 43.50"
Distance Between Tie Bars .......... 28.30" x 28.30"
Clamp Stroke ................................ 34.40"
Maximum Daylight ............................ 73.80"
Minimum/Max Mold Height .............. 22.64"/47.25"
Ejector Stroke (Max) ........................ 9.80"
Screw Diameter (L/D Ratio 25:1).............. 3.35"
Injection Pressure ..................... 29,000 PSI

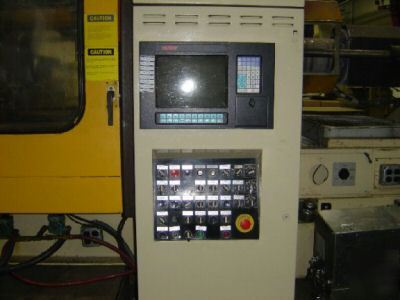

- Siemens 115U Microprocessor
- Core Pulls on Moving & Stationary Platen
- Mold Cooling Package (Supply & Return Manifold
mounted to rear of press & (8) circuits for
platen and connection to main supply.)
- Heat Controls Package. (Basic Mold Temperature
control package consists of heater receptacle box
mounted on front of stationary platen.
- 460 Volts (Main Motor) 230 Volts for Heats
- Weight: Clamp only: ................... 65,000lbs
- Weight: Injection Unit ................ 20,000lbs
- Dim's Clamp End .............. 19'L x 7'W x 9'H
- Dim's Injection Unit ........... 19'L x 7'W x 9'H
