Hp 3581A wave analyzer 15 hz to 50KHZ. 5-digit led.
HP 3581A Portable Wave Analyzer 15 Hz to 50KHz. 5-digit LED Frequency Readout, 1Hz Resolution Analog RMS meter.
As a signal Analyzer, the HP 3581A Separates and Measures the Spectral Components of an Input Signal. By Manually Tuning the Unit Across the Spectrum, the Signal Components can be Individually Measured and Evaluated. By Sweeping the Unit Over the Band of Interest, a Complete Spectral Display can be Plotted With an X-Y Recorder Connected to the Recorder Outputs.

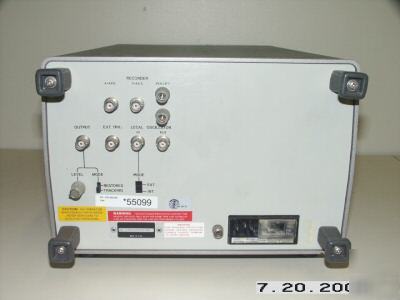

For Added Verstility, The HP 3581A is Equipped With a Rear Panel Tracking Oscillator (BFO Output. When This Output is Used as an Excitation Source.
This Unit Also Functions as a Network Analyzer for Plotting the Amplitude Vs. Frequency Characteristics of 2-port Networks Such as Amplifiers, Attenuators, and Filters.

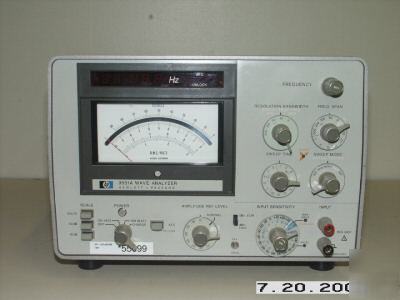

The Amplitude: The Signal is Indicated on a Large, Easy to Read Meter With Mirror Backing. Absolute Amplitude can be Read in dBV, dBm, or rms Volts; Relative Amplitude can be Read in dB or Percent. The Full Scale Sensitivity of the HP 3581A Ranges From 0.1uV rms to 100 Volts rms. For Logarithmic Measurements, the Dynamic Range is 80 dB.
The Frequency: It's Indicated by a 5-digit LED Readout Which Provides 1 Hz. Resolution. If the Analyzer is Tuned Below 0 Hz. The Frequency Digits Blank and the Decimal Points Light to Indicate an Out of Range Condition.
Bandwidths: The HP 3581A has 5 Bandwidths, the 3 Hz, 10 Hz, and 30 Hz Bandwidths Permit Separation of Closely Spaced Signals and Precise Frequency Measurements. The 100 Hz and 300 Hz Bandwidths Permit Wide Range Sweeps at Relatively Fast Sweep Rates.
All Items sell with 5 days right of return, and 15 days GUARANTEE on all parts and labor.
