Hp 60502A 60V/60A 300W load for 6050A / 6051A tested
Click on picture for a larger image.
HP 60502A 60V / 60A, 300W Electronic Load Module
This 60V / 60A, 300W Load is in good used condition. The binding posts are in good, clean shape, and the 10 pin port on the front of the unit has the plastic lid attached. All the traces on the backside of the board appear to be in good shape. The units transformer lid has been cracked. The number on the lid is HP 9100-4762. The heat sink and the spacers are intact and in good shape. This Module has it's retainer pin to secure it to the mainframe. The backplate of the unit has a few scratches on it, but nothing major. The 3 communication ports on the top of the 60502A are in good condition.
This unit's serial number is 3011A-01209.

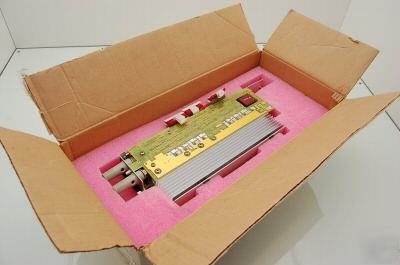

This unit comes with the factory HP original box.
Here is some info we found on the unit - The 60502A is a 60V / 60A, 300W Electronic Load Module designed for use in a 6050A or 6051A Electronic Load Mainframe. It is ideal for the test and evaluation of DC power sources and power components and is well suited for applications in areas such as research and development, production, and incoming inspection. The 60502A module includes programming inputs that allow control of load current via an analog control voltage. It features full protection from over-current, over-voltage, overpower, over-temperature, and reverse polarity. Power connections are made via large high-current binding posts which permit rapid connections by hand and eliminate the traditional bolt/nut connections of the past. Internal or external load sensing is available.
* Maximum power of 300 Watts
* Built-in IEEE-488 interface
* Complete control of all load functions
* Full protection from over-current
Thanks for looking and let me know if you have any questions about the item, I will do my best to answer. The unit is sold tested and is guaranteed NON-DOA with a 7 day ROR.
