> Hp protocol analyzer -- rs-232 gps data capture / debug

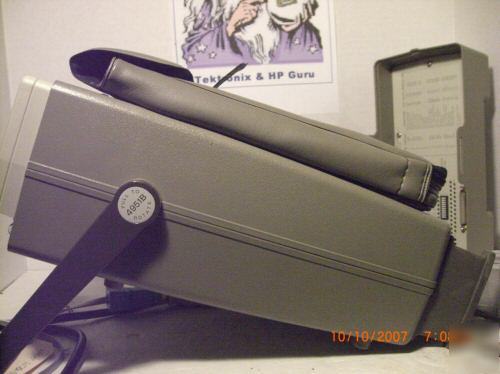

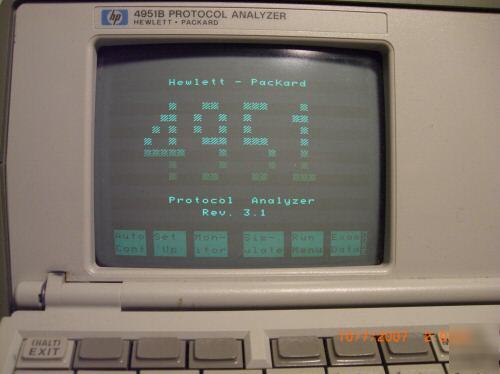

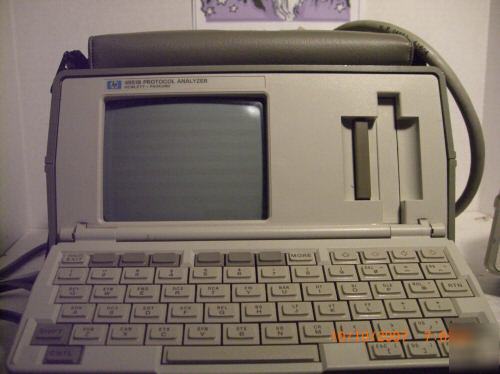

Hp protocol analyzer -- rs-232 gps data capture / debug

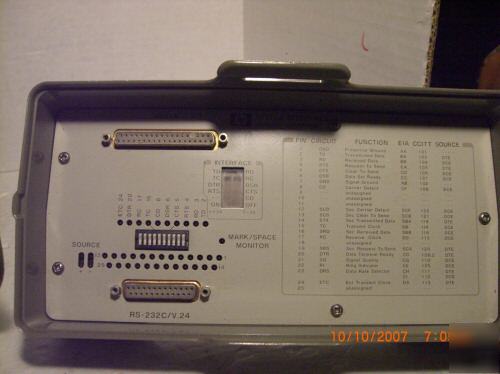

RS-232 Pod w/Full Break-out Box
Verified that EVERYTHING WORKS

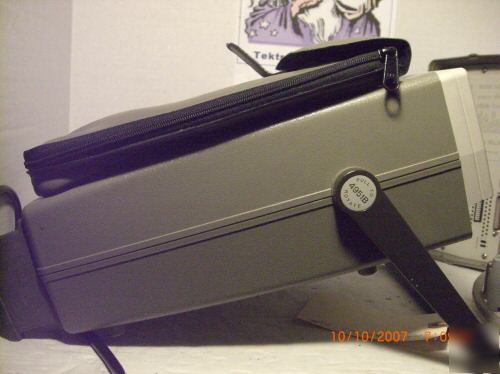

Cleaned and Inspected Inside and OUT
Also includes Pod cable , RS-232 test cable & Power cord

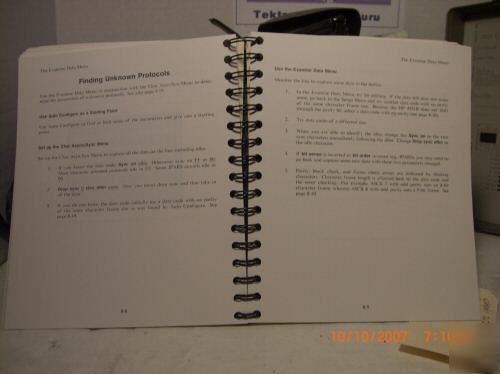

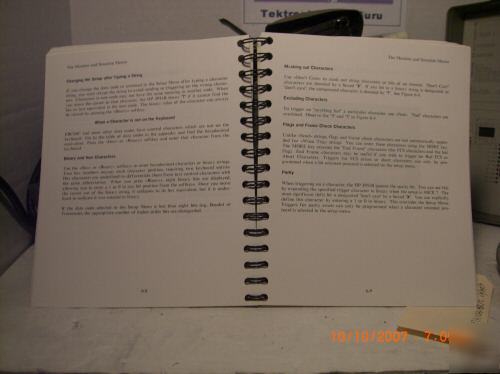

>>> Final Price of $69.95 or more includes Operation Manual
I have 20+ years of experience as a test engineer - old school
If you do anything with RS-232 this is a must
I have used 495!C & 4952A for many years
debugging many different kinds of custom communications protocols
CAN ALSO BE USED TO DEBUG & CAPTURE GPS data via the RS-232 interface of your GPS device
- Each unit is cleaned inside and out -
- I verify that the unit passes all self tests -
- I verify that the CRT brightness has been set to maximum -
(CRT set to maximums would be at end of its life - i.e. soon to burn out)
- I verify that the units 'Mass Storage' works -
- IF equipped I verify that the printer / remote port works -
- IF equipped with OPT 002 I verify that unit can copy a disk -
- IF equipped I verify that the floppy drive can format a disk -
-IF equipped I verify that the floppy drive can read a disk -
- IF equipped I verify that the tape drive can read / write -

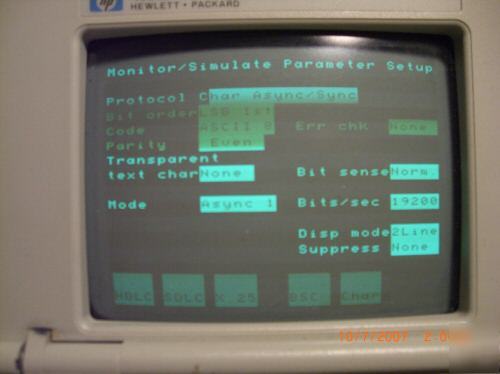

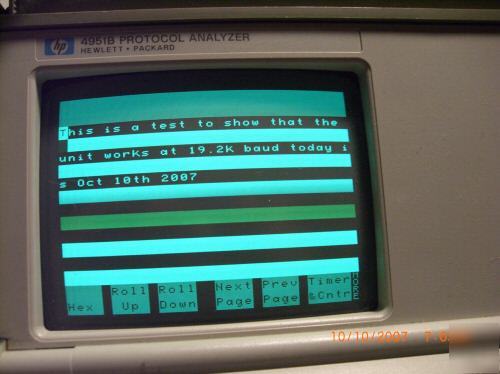

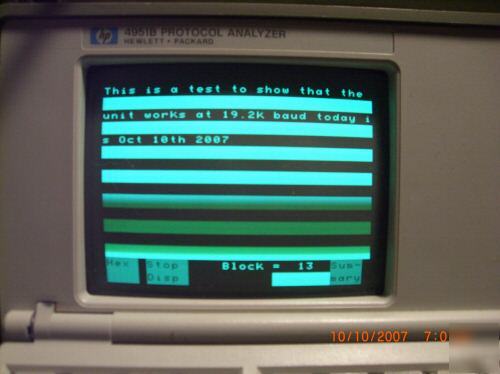

I verify that the unit can monitor and record data at varied baud rates
The Analyzer (by its self) sells for $200+ See Link1, (many other listings 'request quote')
The pod cable sells for $150+ See Link1, Link2 (P/N 5062-2144)
Pods sell for $100+ See Link1, Link2
The Software Disk (included) sell for $150+ See Link1, Link2 (P/N 18260-16001)
Original Retail Price $8000.00
NOT find another guarantied to work Analyzer for this price
Analyzer is guaranteed to work
Click here for Analyzer data sheet
Click here for video on setup of the 4952A / 4951C
(123 Meg file - Broadband Connection Only)
After purchase help on how to use the analyzer please email me
More then happy to walk you through how to setup and use your new analyzer
Local Pickup by appointment only
The Analyzer is sealed in large clear bag (keep out moisture in-case box gets wet).
Next the Analyzer will be wrapped in thick layer of bubble wrap.
The Analyzer will then be placed in a new over sized box
with additional bubble wrap to ensure the product's quality.

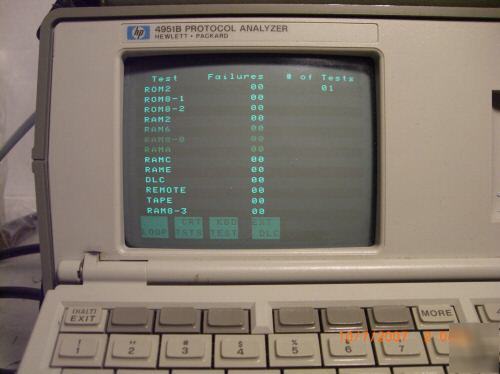

The Analyzer will pass self test without any failures
You will be able to connect the analyzer to RS-232 source
Once properly connected to an RS-232 source you will be
able to capture and recorded at the specified baud rates
Seller not responsible for abuse or misuse of the item.
Requires Option 002 (36k, 56k, 64k baud & 750k ram)
Monitor & decode data transmissions
Stores Leads status - RTS, CTS, DTR, DSR, CD (RS-232)
Stores Leads status - CS, RS, RR, TR, DM (RS-449)
Data Codes - ASCII (8,7 Bit), HEX (8, 7, 6 ,5 Bit) EBCDIC (others)
Framing - 5, 6, 7, 8, Even Party, Odd Party, No Party, 1 Stop bit, 1.5 Stop bit, 2 Stop bit
Error checking - CRC-CCITT, CRC-16, CRC-12, CRC-6, LRC & party
Display formats - DTE only, DCE only, DTE over DCE, Data & State, Frame & Packet
Programmable - 63 Triggers, 5 Timers (1 msec resolution count 65565), 5 Counters up to 9999
Measure time between any two characters (in captured data), display time in milliseconds
Asynchronous terminal emulator (may require loading external software)
Printouts to all RS-232/V24 ASCII printers
Floppy Disk (3 ½-inch custom format) store 613 kbytes of data, timing, lead status, programs, and configurations
Tape drive stores 512 kbytes of data, timing, lead status, programs, and configurations
With optional software supports asynchronous baud rates up to 64k baud
With optional software make copies of disks (NOTE: some software is copy protected only 1 copy can be made)
