Mill dro meister TOP10 2 axis digital readout +2 scales
widest range of Digital Readout and Linear Scales

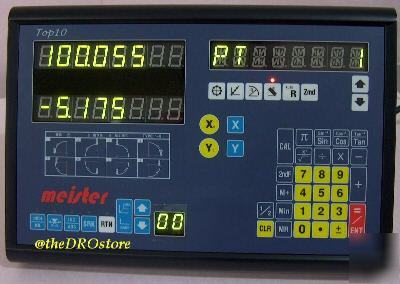

Meister TOP10-2 Axis DRO complete with scales for your Mill
Total Price = A$600 + Transport = A$600 !!
Include 2 pieces of linear scales for your milling machine.
Two (2) pieces of linear glass encoders with travel stroke up to 900 mm(36") max.
(Overall length of linear scale = Travel + 128 mm)
One year warranty direct from factory. Display box swivel mounting arm and English manual provided.
Please email to me for shpping to other countries.
This is an EMCO 8 mill-lathe (Photo from Peter /Germany).
This is a OPTIMUM mill-drill (Photo from James /Germany)
*Meister DRO and scales can be used with Anilam, Acu-Rite, CHFOIC, Easson, Jenix,
Mitutoyo, Sargon and SINO (SIN-HO).
*Please email if you have any questions.
* 1/2 (HALF)- selected axis display is divided by 2
* Scientific Calculator. Result can be directly transferred to the selected axis.
* Absolute/Increment Co-ordinate Interchange
* Recall - recall the last X and Y positions.
* RTN - pause to go to normal operation and return to finish the job. Put the DRO to 'sleep' during break time.
* Mechanic Zero Position Memory: re-establish workpiece zero position after power failure.
* Holes in a straight or oblique line.
* Stores up to 99 datumns.
* Concave/convex radius maching.
* SRK: store the shrinkage factor (best for mold making).
* Linear error compensation.
* Response Speed: 60m/min (198.6feet/min)
* Resolution: 0.005mm/0.0002"
* Quantizing error: +/- 1 count
* Power Source: AC 110 - 220V, 50 - 60 Hz
* Temperature range: Operating 0 ~ 40 deg C, Storage: -20 ~ 70 deg C
* Display: 8 digits LED display; green color
* Dimension: 10.25" x 7.0" x 2.0" (260 x 180 x 50 mm)
This Beaver belong to Mark (Australia).
* Grating pitch: 0.02mm (50LP/min).
* Accuracy: ±0.005 mm or 0.0002"(at 20 deg C).
* Every scale has ABS reference marks.
* Response Speed: 60m/min or 40ins/sec
* Output Signal: Two square wave signals. TTL output with 90 deg phase difference
* Standard 3 metre armoured cable.
Scales are make in standard size with travel (measuring length) stroke of:
* Metric: 100, 120, 150, 170, 200, 220, 250, 270, 300, 320, 350, 370, 400, 420, 450, 500, 520, 550, 570, 600, 620, 650, 670, 700, 720, 750, 770, 800, 820, 850, 870, 900, 1000, 1100, 1200, 1500, 1600, 2000 and 3000 mm.
* Inches: 4.5, 6.5, 8.5, 10.5, 12.5, 14.5, 16.5, 18.5, 20.5, 22.5, 24.5, 26, 28, 30, 32, 34, 36, 40, 43.5, 47, 60, and 63 inches.
* Factory will take 2 ~ 3 days to process your order.
* Transit time is about 7 ~ 9 days to Australia/NZ (subjected to delays in transit).
* Please be assured that we take great care in our packaging.
