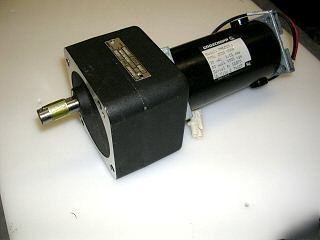

New croschopp 90 vdc motor with gear head .
90VDC, 4900 RPM, 120/1 RATIO THE UNIT IS 9 1/2" LONG AND 2 1/2" SQ. THE SHAFT IS 1 1/4" LONG AND APX 1/2 DIA.
THE UNIT HAS A GEARHEAD MODEL PS1900 PART # 924-19-1200 THE PS1900 IS A PARALLED -SHAFT GEARMOTOR WHICH FEATURES CONTINUOUS DUTY TORQUE RATING IS 125 IN LBS. THE GEARMOTOR HAS HOBBED AND HARDENED SPUR GEARS AND HELLICAL GEARING ON THE INPUT STAGE, CAST ALUMINUM HOUSING, INTERNAL BALL BEARINGS AND NEEDLE BEARINGS ON THE OUTPUT SHAFT PROVIDE OVERLOADING DURABILTY AND QUIET OPERATION. THE OUTPUT IS APX 41 RPM
LET US KNOW IF YOU HAVE ANY QUESTIONS. THANKS FOR LOOKING.
