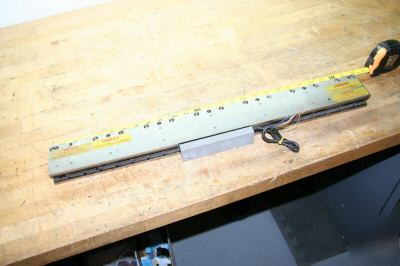

Parker trilogy linear servo motor encoder aerotech
* Linear Motor Model: Parker Trilogy I-Force Series 310-2A
* Continuous Force Output (@ 20 psi air cooling): 91.6 N (20.6 lbs)
* Peak Force Output: 409.3 N (92.0 lbs)
* Back EMF Constant: 31.5 volts / m/s (line to line peak)
* Maximum Bus Voltage: 330 Volts DC
* Continuous Current (@ 20 psi air cooling): 3.4 amps peak (2.4 amps RMS)
* Force Constant: 27.3 N/amp peak (6.1 lbf/amp peak)
* Track Length: 640 mm (25.2") (5.67")
* Effective Travel Length: 500 mm (19.69")
The specs above are for this motor. This is part of the Parker Trilogy I-Force series of ironless linear motors. A full spec sheet with pinouts and additional information is available below. The motor has a travel length of 500 mm. This set is in perfect functional shape. Guaranteed not DOA. Cosmetically, the magnet track has some ferrous dirt trapped between the magnets, but this is quite common for ironless motors and does not hinder performance in the least. Below are the specs for this assembly. Relevant information for this motor starts on page 26. (motor part number 310-2A)
http:// /pdfs/Trilogy_Catalog.pdf
