RF8315R-u active rfid receiver (usb)

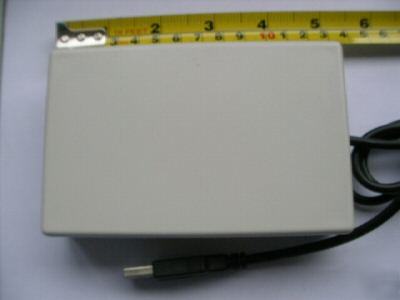

RF8315R-u Active RFID Receiver USB ( Dimensions, 13cm X 8 cm X 3.5 cm )
The RF8315R-u active RFID receiver module receives data sent from RF8315T modules. Data received will be sent via USB. Standard communication software such as Hyperterninal can read the data. Custom program can read data from com port for system integration or application development. An included ActiveX control makes the application integration simple and fast.
* Plug and play. No need to send command to control the receiver
* Can read data within 8 meters with build in RF8315T antenna. If RF8315Tantenna changed to 9" wire the effective radius can be 14 meters.
* Superheterodyne design for maximum stability
ID sent by RF8315T(4 characters) plus 1 space
9600 Baud, 8 bit words,1 stop bit,1 start bit, no parity
Two elder care centers in Hong Kong are using these devices to monitor who are inside the centers. The data is sent out to the central server via gprs and is used for attendance reporting, daily diet manual preparation and SMS will be sent to officers-in-charge when they leave the main gate during monitoring hours.
Superheterodyne design is the most stable but expensive design. This is particular suitable for challenging working conditions such as strong wind, serious raining and fast moving objects. Although this design has so many advantages, it cannot receive short distance signal (within 1 meter). As a result this receiver cannot report the ID send by RF8315T within 1 meter.
We reserve the right to sell this items to some countries. Since some countries imposed complex custom regulation. Please check with us in advance.
We charge US$9.90 and US$7.90 for additional item for all countries.
It will be marked as sample for simple custom clearing.
If there is any problem, please mail it back to us and we will mail replacement to you by international air parcel within 2 days. Warranty is subject to the availability of the electronic parts, therefore please inform us first.
