Accu-fab systems servo controller model 1290

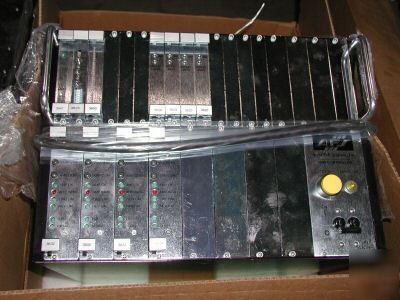

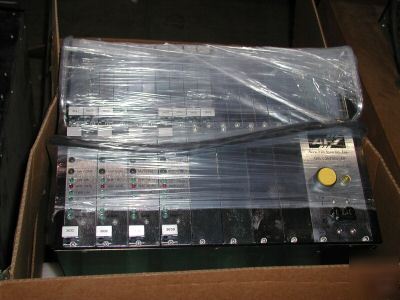

Accu-Fab Systems Servo Controller Model 1290
* This 1290 Servo Controller contains these components:
* 19" rack-mountable chassis with fully enclosed power supplies (AFS 3611)
* Motherboard (AFS 3602)
* The cage holds these plug-in cards:
* (1 ea.) Host Interface Card (AFS 3641)
* (1 ea.) System Control Card (Servo/ESTOP, Bit I/O) (AFS 3625)
* (1 ea.) Digital I/O Card (16 inputs, 16 outputs) (AFS 3650)
* (4 ea.) Servo Axis Control Cards (LM628-based) (AFS 3620)
* The 1290 Servo Controller acts as a peripheral to a host computer. System component printed circuit boards are inserted in the 1290 controller chassis to make a complete system. This system supports:
* Up to 8 high power servo axes or 4 low power servo axes (brush and/or brushless type motors).
* A combination of up to 128 digital inputs, 64 digital outputs.
* Analog inputs/analog outputs.
* Up to 8 torque/speed controlled screwdriver controls.
