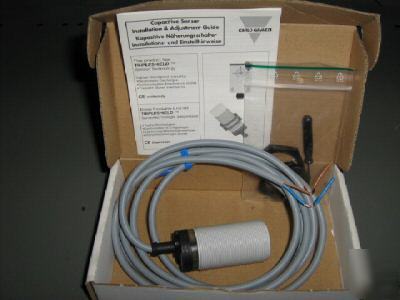

Carlo gavazzi EC3016TBAPL proximity switch
CARLO GAVAZZI CARLO GAVAZZI EC3016TBAPL PROXIMITY SWITCH
Proximity Sensors Capacitive TM IELD Thermoplastic Polyester Housing SH IPLE TR Type EC, M 30, AC
· Featuring TRIPLESHIELDTM Sensor Protection · Adjustable sensing distance 2-16 mm or 4-25 mm · Rated operational voltage: 20-265 VAC · Output: SCR · Make and break switching function · LED indication · High noise immunity · Both flush and non-flush types · Plug and Cable versions available · DC versions in the same housing
Capacitive proximity switches with either sensing distance 16 mm flush mounted in metal or 25 mm sensing distance non-flush mounted. 2-wire AC output with a switch for choosing NO and NC switching. Grey M 30 polyester housing with 2 m PUR cable or plug. Ideal for use in level and plastic machinery applications.
Rated operational volt. (UB) Ripple Rated operational current (Ie) Continuous Short-time Min. load current OFF-state current (Ir) Voltage drop (Ud) Power ON delay Frequency of operating cycles (f) Indication for output ON Rated operating dist. (Sn) (adjustable) 20 to 265 VAC (ripple included) 10% 500 mA 1.2 x Sr 5% 4 to 20% of sensing distance EMC ratings ENV 50 140 RF Electromagnetic field AM, 80-1000 MHz, Level 3 ENV 50 204 RF Electromagnetic field PM, 80-900 MHz, Level 3 EN 61000-4-2 ESD Contact discharge, Level 4 Air discharge, Level 4 ENV 50 141 RF Common mode EN 61000-4-4 Fast transient Rep. freq. 5 kHz, Level 3 IEC 60947-5-2 Surges common mode, Gen. Imp. 500E, Level 3 Environment Degree of protection Operating temperature Storage temperature Housing material Cable Plug (-6) Cable for plug (-6) Weight (incl. nuts) Acc. to EN 50 082-2 10 V/m 10 V/m 8 kV 17 kV 2 kV 2.5 kV IP 67 (Nema 1, 3, 4, 6, 13) -25° to +80°C ( -13° to +176°F) -40° to +85°C (-40° to +185°F) Grey thermoplastic polyester 2 m, 2 x 0.5 mm2 grey PUR, oil proof M12 x 1 double keyed CONH-1A-series 3016: 140 g 3025: 150 g
