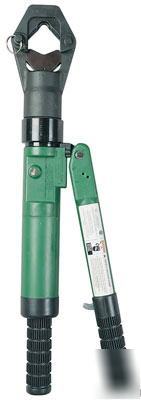

Greenlee 1990 dieless crimp tool
GREENLEE Dieless Crimping Tool to 1000 kcmil (MCM)
Take Delivery as early as: 11/15/2007
•Capacity - Copper: #4 AWG - 1000 kcmil (MCM)
•Capacity - Aluminum: #6 AWG - 1000 kcmil (MCM)
•For use with connectors up to a maximum of 1.815" (46.10 mm) diameter
•Tool Weight: 16.5 lbs. (7.5 kg)
•Dieless crimping head, no dies to lose or replace.
•Patented pressure system automatically changes crimping force for each connector size/type. Eliminates errors.
•Seven indent profile requires fewer crimps per connector.
•Automatic two speed pump for rapid advance.
•15 ton (133.4 kN) maximum crimping force.
•Swivel head rotates 180° for maximum flexibility.
•Hinged head for easy connector loading and unloading.
•Includes Pressure Test Kit and steel carrying case.
•Not for use with "C" and "H" taps.
•UL and cUL classified for use with Anderson, Blackburn, FCI Burndy, ILSCO, Penn-Union and Thomas & Betts copper color-coded connectors 4 AWG-1000 kcmil (MCM) and aluminum color-coded connectors 6 AWG-1000 kcmil (MCM).
