New advanced motion controls brush servo amplifier 10A8

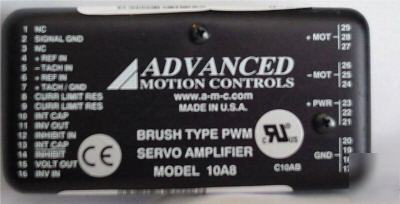

Advanced Motion Controls Brush Servo Amplifier 10A8 NEW
· Four quadrant regenerative operation
The 10A8 Series PWM servo amplifiers are designed to drive brush type DC motors. The 10A8 model is fully protected against over-voltage, over-current, over-heating and shortcircuits across motor, ground and power leads. This model interfaces with digital controllers or can be used as a standalone drive. The 10A8 model requires only a single unregulated power. .A potentiometer is located on the side for loop gain adjustment.
POWER STAGE SPECIFICATIONS 10A8
PEAK CURRENT (2 sec. maximum) ± 10 A
MAXIMUM CONTINUOUS CURRENT ± 6 A
MINIMUM LOAD INDUCTANCE* 200 μH
SWITCHING FREQUENCY 33 kHz ±15%
HEATSINK (BASE) TEMPERATURE RANGE 0° to + 65° C, output current limit internally reduced to 0 Amps if above + 65° C
POWER DISSIPATION AT CONTINUOUS CURRENT 24 W @6A
OVER-VOLTAGE SHUT-DOWN (self reset) 86 V
BANDWIDTH (load dependent) 2.5 kHz
Size 4.00 X 2.00 X 0.60 inches
