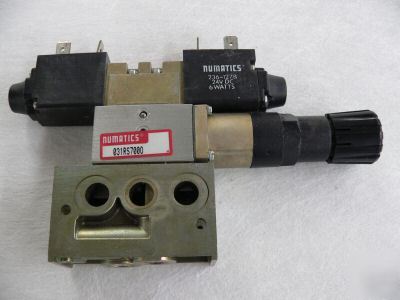

Numatics mark 3 031SS4004 solenoid sandwich valve 24VDC
Numatics 4-way Pneumatic Sandwich Style Double Solenoid Valve with Integral pressure regulator
Valve Model 031SS4004, Regulator 031RS700O (0-100psi)
Stack several of these valves together to simplify plumbing. Supply and exhaust ports are common between valves, output ports are individual.
Solenoids are 236-127B 24 VDC 6 Watts
http:// /product/valves/mk3.asp
http:// /deliverables/catalogs/valves/mk3.pdf
The Mark 3 Series offers high flow in a miniature valve design. The Mark 3 line is available with 10-32 or 1/8 porting in either sub-base or manifold mounting, sandwich speed control and sandwich pressure regulators.
* Port Sizes: 1/8 NPTF & G, 10-32, M5
* 5 ported, 2 and 3 position, 4-way, spool & sleeve
* Flow Capacity: 8.34 to 16.21 SCFM @ 80 PSIG / 177 to 345 NI/m @ 6 bar
* Operating Pressure Range: 28" Hg. Vacuum to 150 PSIG / Vacuum to 10 bar
* Pilot Pressure Range: 20 to 100 PSIG / 2 Position Detented 15 to 100 PSIG
* Temperature Range (Ambient): -10°F to +115°F (-23°C to +46°C) / Air Pilot +200°F (+93°C)
* Direct solenoid, air pilot or solenoid air pilot actuated
* DIN plug-in solenoid with indicator light
* Unlubricated or lubricated service
* Integral speed control available
* Integral regulators available
