2HP 230V af-300 E11 ge fuji afd ac drive af-300-E11 vfd

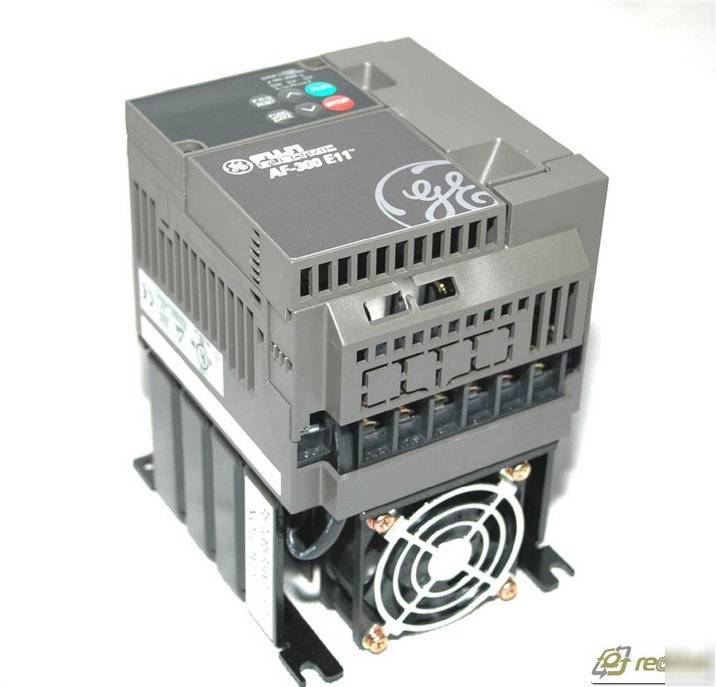

2HP 230V AF-300 E11 GE Fuji AFD AC Drive AF-300-E11 VFD
2HP 230V AF-300 E11 GE Fuji Adjustable Frequency AC Drive / Inverter AF-300-E11
Adjustable frequency vector control AC drive.
Click to see more items from Redrive Inc.
The AF-300 E11 adjustable frequency drive is GE Fuji Drives' new generation of micro drives. GE Fuji Drives recognized your need for a high performance, full featured compact drive and designed the AF-300 E11 drive with these features in mind. This product is specifically intended for original equipment manufacturers who require maximum performance in a minimal space for a cost effective system.
Dynamic torque vector control
Provides optimal control of voltage and current vectors for maximum output torque
Capable of moving heavy loads like a conveyor, lift, and/or traverse
Fit easily into limited space applications
Minimizes influence to devices such as sensors
Automatic energy-saving function
Reduces motor loss and electric costs
Detects the secondary resistance of the motor and maintains stable rotation regardless of variation in motor temperature
Restarts a rotating motor without shock
Eliminates need for some external process controls
Allows use with standard general purpose motors
Allow low cost system integration using the RTU protocol
Configures different drive with Windows?-based software
Inrush current control circuit
Allows use of peripheral equipment having smaller capacity
Compliance with major international standards
Assurance of smooth integration with global equipment requiring CE, TUV, UL, CUL
AF-300 E11 Operation and Maintenance Manual
AC3PH 200-230VAC (3-Phase) 50/60Hz 11.1A
V/f, Sinusoidal PWM (Dynamic torque vector control) with "current vibration suppression function" and "dead time compensation function"
Analog reference: 1/3000 of maximum output frequency Keypad panel reference: 0.01 Hz (99.99 Hz or lower), 0.1 Hz (100.0 to 400.0 Hz) LAN reference : 1/20000 of Maximum frequency (0.003Hz at 60Hz,0.006Hz at 120Hz,0.02Hz at 400Hz), or 0.01Hz (Fixed)
24-48 hours turnaround time for 95% of repairs
30 days limited warranty and support
Exchange option available for repair price
Optional Extended Warranty available
All units will be tested with suitable equipment and repaired by professionals
CLICK here to see Full line of our products.
Phone: (***)-478-1328 ****@redrive.net Fax: (***)-478-1328
We offer repair service for many drives, power supplies, motors and servopacks
24-48 hours turnaround time for 95% of repairs.
30 days limited warranty and support
Exchange (trade-in) option available for repair price after refund for some items. (If we have same item for sale)
Optional Extended Warranty (6 or 12 months) available for additional cost
All items will be tested with suitable equipment.
Contact us for price quote and more details. Repair prices will pleasantly surprise you!
Manufacturers warranty applies on all new products.
If you are dissatisfied with a product from REDRIVE Inc. you may return the product within 15 calendar days of the invoice date. A 20% restock administration fee will apply to all non-warranty returns. No non-warranty returns will be accepted 15 days after the invoice date. (If you need to make a non-warranty return claim please contact us at ****@redrive.net for a return authorization number (RMA#) prior to any return). Refunds will be issued only upon receipt and testing. Product must be returned in purchased condition and accompanied by a REDRIVE Inc. return authorization number (RMA#).
