#420-16 cincinnati-milacron "dial-type" vert mill 23318

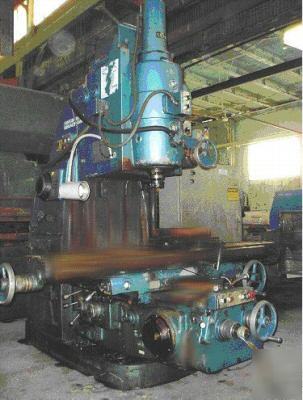

#420-16 CINCINNATI-MILACRON "DIAL-TYPE" VERTICAL MILL
New 1979, Serial No 31044V78-0006, Model 420-16,
Motor On Knee - Front & Rear Controls
Vertical Turret Stops w/Dial Indicator (4-Position)
Table Dimensions (Overall), W x L...... 16.25" x 79.75"
Table Working Surface, W x L........... 16.25" x 79.75"
Table Longitudinal Travel (X-Axis)..... 42"
Saddle Cross Travel (Y-Axis)........... 16"
Knee Vertical Travel (Z-Axis).......... 16"
Spindle-Head Vertical Travel (Z-Axis).. 6"
Spindle-Nose to Table, Minimum......... 0"
Spindle-Nose to Table, Maximum......... 22.125"
Spindle Taper.......................... #50 NSTD
(24) Spindle Speeds, Range............. 16 to 1600 RPM
(32) Longitudinal and Cross Feeds...... 3/8 to 90 IPM
(32) Vertical Head Feeds, Range........ 3/16 to 45 IPM
(32) Vertical Knee Feeds, Range........ 3/16 to 45 IPM
Power Rapid Traverse, Long & Cross..... 150 IPM
Power Rapid Traverse, Vertical......... 75 IPM
Spindle Motor, Horsepower.............. 20 HP
Feed Motor, Horsepower................. 5 HP
Weight, Approximately.................. 12100 LBS
PRICE: F.O.B. OUR WAREHOUSE........... $19,500.00
All machines/equipment subject to prior sale.
