Dwyer series 3000 photohelic presure switch / gage

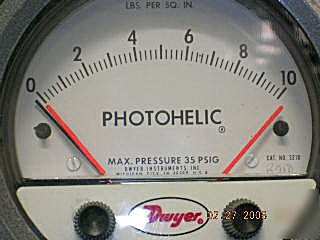

Dwyer Series 3000 PHOTOHELIC Presure Switch / Gage New in Box
This item is new in factory box.
Pressure Limits: -20" Hg. to 25 psig
Temperature Limits: 20 to 120°F
Size: 4" (101.6 mm) dial face, 5" (127 mm) O.D. x 8-1/4" (209.55 mm)
Switch Type: Each setpoint has 2 Form C relays (DPDT)
Electrical Rating: 10A @ 28 VDC, 10A @ 120, 240 VAC
Power Requirements: 120 VAC, 50/60 Hz; 240 VAC & 24 VAC Power optional.
