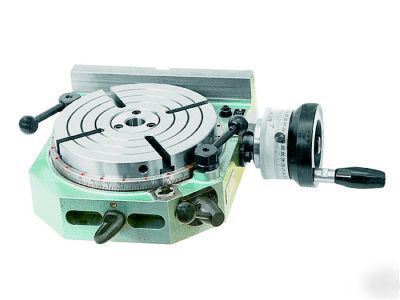

New bison 16" rotary table horizonal / vert
16" ROTARY TABLE DELIVERED ALL NEW BISON PRODUCT.
TWO MOUNTING BOLTS WITH NUTS AND 3 DIVIDING PLATES WITH HANDLE.
* TABLES CAN BE USED HORIZONTALLY AND VERTICALLY.
* RIGID, LOW PROFILE, COMPACT DESIGN PROVIDES FOR THREE TYPES OF DIVIDING.
* ANGULAR INDEXING CAN BE PREFORMED THROUGH THE GRADUATED RING FROM 0 DERGEES TO 360 DEGREES IN INCREMENTS OF 1
* RIPID INDEXING IS DONE BY MEANS OF A SPECIAL DIVIDING MECHANISM IN DIVISIONS 2, 3, 4, 6, 8, 12, AND 24 WIHOUT ANY DISASSEMBLY OPERATIONS.
* INDEXING WITH THE SET OF SPECIAL DIVIDING PLATES.
PARALLELISM OF CLAMPING SURFACE TO BASE .0008"
FLATNESS OF CLAMPING SURFACE .0008"
TRUE RUNNING OF MT 3 CENTER HOLE .0004"
SQUARENESS OF CLAMPING SURFACE TO BASE .0008"
