New telemecanique XCKL102 compact limit switch brand

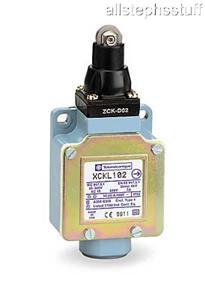

Telemecanique XCKL102 Compact Limit Switch BRAND NEW
Compact Limit Switch, Contact SPDT, Operating Force 35.6 Inch Ounces, Type Roller Plunger, Height 4.55 Inches, Depth 1.18 Inches, Width 2.04 Inches, Replacement Body 2EJ31, Replacement Head 2EH96, Normally Opened and Normally Closed Snap Contact
Feature 4-position indexing rotary head (field convertible) and captive saddle clamp terminals in convenient ready-to-wire position.
Rated thermal current: 10A. Rated insulation voltage: 300VAC and VDC. Vibration resistance: 25 G (10 to 500 Hz). Shock resistance: 50 G. Contact resistance max.: 25 m. For short circuit protection, use 10A fuses, type SC. UL Listed, CSA Certified, and CE Certified.
* Wire size: max. 2 x #16 AWG per terminal
* Operating temperature: -13 Degree to 158 DegreeF
Feature positive opening contact and Finger Guard (TM) protection.
* Enclosures are rated NEMA 1, 2, 3, 4, and 12
* Captive screws and gaskets
