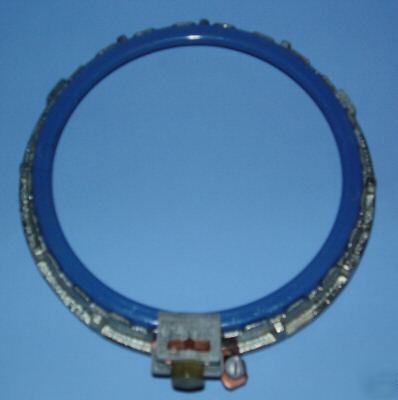

6-inch insulated grounding bushing
This was bought as part of a surplus lot from the Tennessee Valley Authority. The bushing has never been used, but there is some white rust from extended storage.
Part number 3881. Manufactured by Thomas and Betts. Used for fast installation of bonding jumper to more than one Rigid or Intermediate Metal Conduits. Made to bush conductors and keep insulation from being damaged. Trade Size:6 inches;Diameter: 7.406 inches; height: 1.2 inches; set screw, threaded installation; nylon insulated throat; Insulator rated for 150°C/302°F; application. Electro-zinc plated cast malleable iron body; wire size is 14 TO 4 AWG; wire range is 2 to 4/0; The lug is lay-in, tin-plated aluminum; The conductor material is copper/aluminum. Resale: $280.00. To verify specifications on this item, you can visit electricalreference.com.
