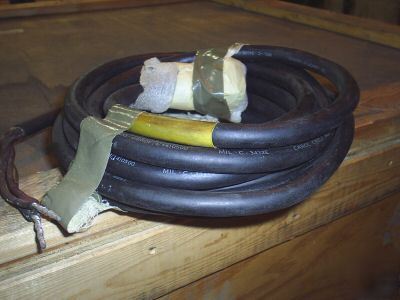

Cable assembly,power,electrical
CONDUCTOR FORM - STRANDED ALL CONDUCTORS
MATERIAL - COPPER CORE CONDUCTOR ALL CONDUCTORS, RUBBER BUTADIENE-STYRENE CLASS SBR 1ST POSITION PRIMARY INSULATION ALL CONDUCTORS, RUBBER BUTADIENE-STYRENE CLASS SBR 1ST POSITION JACKET CABLE
SURFACE TREATMENT - TIN CORE CONDUCTOR ALL CONDUCTORS
ROUND CONDUCTOR SIZE - 14 AWG ALL CONDUCTORS
STRAND QUANTITY PER CONDUCTOR - 41 ALL CONDUCTORS
STRAND AWG SIZE PER CONDUCTOR - 30 ALL CONDUCTORS
CONDUCTOR ARRANGEMENT AND QUANTITY - 4 SINGLES
VOLTAGE RATING - 600.0 AC MAXIMUM RATED WORKING VOLTAGE ALL CONDUCTORS
STYLE DESIGNATOR - 10 INTERNAL CONNECTOR AND STRIPPED
CROSS-SECTIONAL SHAPE STYLE - 6 ROUND
CROSS SECTION OUTSIDE DIAMETER - 0.500 INCHES NOMINAL
TERMINATION TYPE - CONNECTOR PLUG 1ST END ALL CONDUCTORS, STRIPPED 2ND END ALL CONDUCTORS
TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER - MW10FA17 1ST END ALL CONDUCTORS
TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE - 81349 1ST END ALL CONDUCTORS
INDIVIDUAL CONDUCTOR LENGTH - 6.000 INCHES NOMINAL 2ND END ALL CONDUCTORS
SPECIAL FEATURES - USES CABLE TYPE C0-04MOF4/14/0500 PER SPEC MIL-C3432
