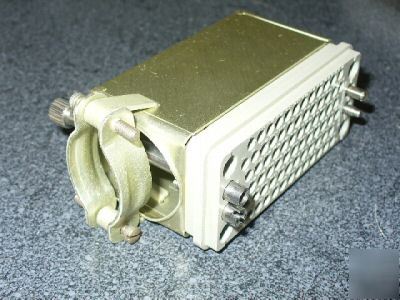

Connector body,plug,electrical
BODY STYLE - 17A HOOD, SIDE OPENING W/CLAMP
OVERALL LENGTH - 3.137 INCHES MAXIMUM
OVERALL HEIGHT - 2.467 INCHES MAXIMUM
OVERALL WIDTH - 1.375 INCHES MAXIMUM
CONNECTOR LOCKING METHOD - JACKSCREW-SOCKET
THREADED DEVICE TYPE - COUPLING FACILITY
THREAD SERIES DESIGNATOR - UNC
NOMINAL THREAD SIZE - 0.138 INCHES
CONNECTOR CABLE STRAIN RELIEF METHOD - CABLE CLAMP
CABLE ENTRANCE DIAMETER - 0.859 INCHES MINIMUM AND 0.984 INCHES MAXIMUM
SHELL TYPE - HOOD, SIDE OPENING
SHELL MATERIAL - ALUMINUM ALLOY
SHELL SURFACE TREATMENT - PASSIVATE
POLARIZATION METHOD - JACKSCREW
CONTACT POSITION ARRANGEMENT STYLE - DEAB 75 SINGLE MATING END
INSERT MATERIAL - PLASTIC DIALLYL PHTHALATE GLASS FILLED SINGLE MATING END
INSERT MATERIAL DOCUMENT AND CLASSIFICATION - MIL-M-14,TY SDG-F MIL SPEC SINGLE MATERIAL RESPONSE OR MIL-P-19833,TYPE GDI-30F MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END
ENVIRONMENTAL PROTECTION - HUMIDITY RESISTANT AND SHOCK RESISTANT AND THERMAL SHOCK RESISTANT AND VIBRATION RESISTANT
(NON-CORE DATA) JACKSCREW TYPE AND LOCATION - MALE LEFT-HAND AND FEMALE RIGHT-HAND
(NON-CORE DATA) MISSING CONTACT TYPE AND QUANTITY - 75 ROUND PIN
