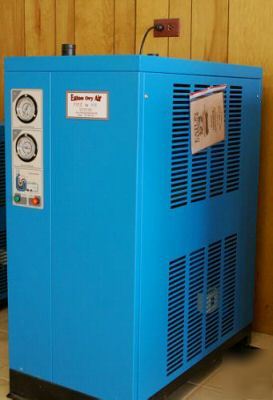

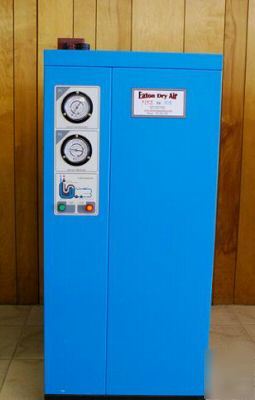

High temperature air dryer for 10-15 hp air compressors


* Power Source - Single Phase, 110V,60 HZ
This refrigerated air dryer system is very low maintenance. You just plug it into 110V, Single Phase and connect your air lines from the compressor to the IN marked “air port” and connect your shop air to the OUT marked “air port”. On the IN marked “air port”, I do recommend a coalescer filter system. This will remove all particulate from your air system down to 1 micron. A coalescer filter will also remove any oil that the compressor might use and keep it from getting into your air dryer. An air compressor oil-type will use 1-5 parts per million in oil carry over. It is just like your car motor, it will use “some” oil. The oil that is uses gets into your air lines in a millionth amount, but over a period of time, can plug your dryer up. This filter system will stop that from happening.

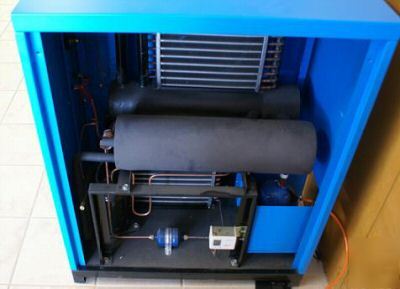

We use high quality refrigeration units in our dryers and high quality heat exchangers for maximum durability in industrial applications. This dryer also cycles the fan motor on and off as the air temperature goes up and down. This dryer only pulls 2.66 amps on 110V, Single Phase. It is very energy efficient. This dryer also has a temperature gauge on the outlet air line that tells the air temperature. This dryer has a lighted ON/OFF switch that you can turn your dryer on and off manually at the beginning or end of the day. This dryer has a very high quality auto drain for draining your air dryer. It also has a ball valve to turn the air off to the auto drain when maintenancing it and you do not have to shut your shop down when doing so. You can drain it manually when doing this. This dryer has an easy-access panel on the right side of it as you are facing the front of the dryer. This has 2-hand tightened screws so you can quickly remove it for maintenancing it. This dryer has NO plastic—it is all HEAVY gauge material. This dryer has a 1” inlet port and a 1” outlet port.
The dimensions of this air dryer are 31.5" D x 17 5/8” W x 39 1/4 ” H.You do not need any intercoolers with this dryer. It will handle your air system with great efficiency and QUIET operation.
