> New 12.0 ibs spool mws awg 20 hapt copper magnet wire -

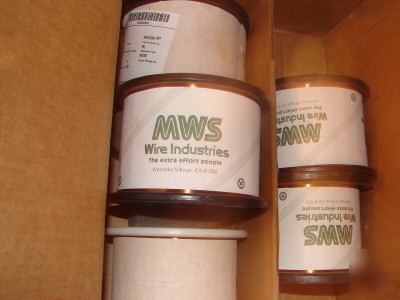

New 12.0 ibs spool mws awg 20 hapt copper magnet wire -
( S = Single build - H = Heavy build - T = Triple build - Q = Quadruple build )
Non-standard insulation builds available upon request.
Insulation Type: Polyester A/I Topcoat
Federal Specification: JW1177/14
Polyester-amide-imide magnet wire is a two part insulation consisting of a modified polyester basecoat with a super-imposed amide-imide outer coating. This wire exhibits exceptional windability, heat shock resistance, and ability to withstand overloads. Chemical resistance to most solvents and insulating varnishes is extremely good. It is not softened by refrigerants and extractions are essentially zero.
Fractional and integral horse power motors(hermetic and open), automotive and hand tool armatures, dry type transformers.
Values listed below are derived from the NEMA MW1000-1997 Standard or MWS Wire Industries internal inspection criteria
