New 3 solid state timing relays - no

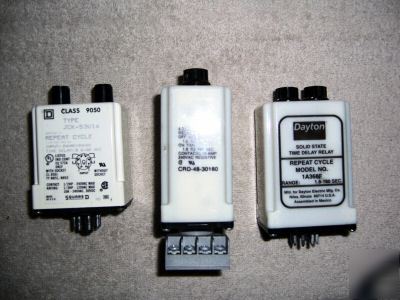

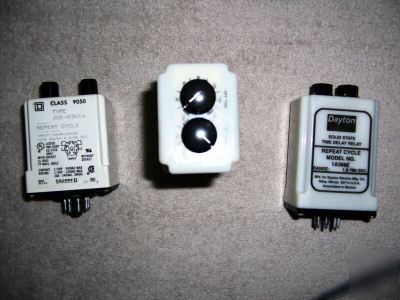

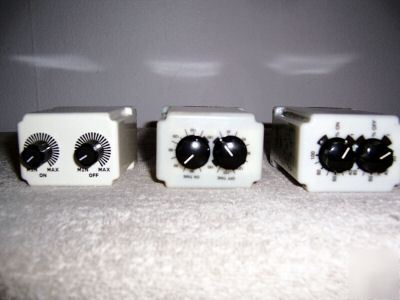

Dayton Solid State Time Delay Relay - Repeat Cycle Model # 1A368F. Range: 1.8-180 Sec. Contacts 1/3 HP, 10A, 120VAC. 1/2HP, 240VAC.
Square D Class 9050 type JCK-53V14, series A repeat cycle timing relay. Input: 24VAC/24VDC. Time Delay: 0.6-60 Sec. Contact rating: 1/2HP - 240VAC Max, 1/3 HP - 120VAC Max, 10A - 240VAC, 30VDC
Potter & Brumfield CRD-48-30180 Product Details
· Contact Arrangement = 2 Form C, DPDT, 2 C/O
· Contact Rating = 10A @ 30 VDC or 277 VAC
* 1.8 seconds to 180 seconds
* Not relevant for lead free process
* Product Type = Time Delay Relay
* Termination Type = 8-Pin Octal Style Plug
* Contact Rating = 10A @ 30 VDC or 277 VAC
* Mode of Operation = Recycle Timer
* Delay Time = 1.8 seconds to 180 seconds
* Repeatability, Max. = ± 2%
* Approved Standards = CSA Certified, UL Recognized
* Contact Material = Silver Cadmium Oxide
* Approx. Dimensions (L x W x H) (mm [in]) = 61.10 x 45.20 x 90.40 [2.407 x 1.780 x 3.561]
* Enclosure = White Plastic Case
Configuration Related Features:
* Contact Arrangement = 2 Form C, DPDT, 2 C/O
* Multiple Timing Ranges = Without
* RoHS/ELV Compliance = Not ELV/RoHS compliant
* Lead Free Solder Processes = Not relevant for lead free process
* Temperature Range (°C) = -10 – +55
* Brand = Potter & Brumfield
