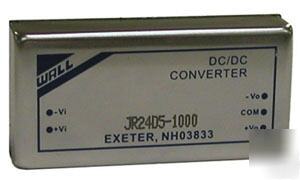

New dc/dc power converter wall industries 10 watts
* output power up to 10 watts, no derating
* continuous short-circuit protection
* Pi input filter for low reflected ripple current
* no derating to +71°C ambient/ +85°C ambient industrial grade
* UL1950, cUL950, EN60950 and CE mark (excluding 4.5-9Vin models)
The JR series of dc/dc converters features units of up to 10 watts in a 1.0" x 2.0" x 0.40" package. These units are PCB mountable and include an input filter for low reflected ripple, continuous short-circuit protection, and up to 1600VDC input/output isolation.
All specifications apply at 25ºC unless otherwise noted.
(full load and nominal Vin) ±2% max.
Load Regulation (20-100% load)
single:50mV p-p, dual:75mV p-p
Transient Response (50% load step)
Isolation Voltage (input to output)
Isolation Resistance (input to output)
Operating Temperature (ambient)
-25°C to +85°C (derating):-40°C to +85°C(non)
All case and pin-to-case dimentions reference only unless otherwise noted.
All DC/DC converters should be externally fused for protection.
PC pins -0.04" diameter x 0.20"long (min.); typical five places.
Pin to pin tolerance: ±0.01", pin diameter tolerance: ±0.005".
