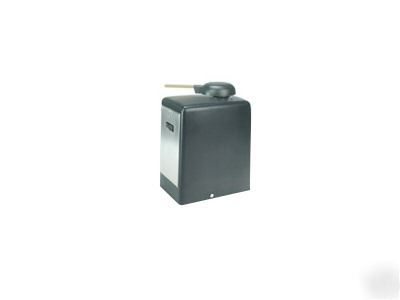

New elite swing gate operator, csw-200-ul, 1/2 hp,
Please E-mail us at ****@fastaccesssecurity.com for additional information about this Elite operator or any other Elite operator. We stock ALL models in addition to ALL accessories including loop detectors, receivers, transmitters, magnetic gate locks and photoelectric safety sensors!!!!
Price is for 1 NEW / In Original Crate/Box "ELITE" CSW-200-UL High Traffic Commercial Swing Gate Operator !!!!!
THE CSW-200-UL SERIES SWING GATE OPERATORSâ„¢
Modular Board – Uses LEDs to indicate all input and output functions of the gate operator.
ERD – If the gate hits a vehicle while closing, it reopens. If it hits a vehicle while opening, it stops, reverses 4 to 6 inches and stops again.
Digital Motor Protection – Entrapment sensor shuts off the motor after it reaches the stall amp for 3 seconds, reverses direction for several inches, and stops.
Electronic Inputs – Radio receiver, key switch, safety loop, center loop, telephone entry system, computer input, fire dept. key switch & 3-push-button station.
Timer – Adjustable timer can be set from 3 to 60 seconds.
Power Input On/Off Switch – Controls power input to the board with convenient switch.
Power Management – Board includes electronic power management with over current shutdown and
Burglar Alarm – With Omni Option board, interfaces with existing home alarm or alarm output.
3 Push Button Control – On board gate operator control for close, stop, and open.
Intelligent Master/Slave – Precise, synchronized movement and communication between two gate operators using 3 wire RS-485 bi-directional technology.
Spike Suppressors – 20,000 Amps and near lightning protection with modular omni surge suppressor. Initial
response time: 0.000000000001 seconds.
Alternate Outputs – With Omni Option Board 3 push button command control, burglar alarm input and output.
Gate Traveling Time – Adjusted by a precision mechanical device and electrical limit switch system.
Soft Stop – Gate travels through the cycle at normal speed and comes to a stop slowly for more accurate gate cycle. Equipped with integrated time delay for long mechanical life expectancy
Integrated Loop Detectors – Easy to install, modular, plug in loop detector inputs for exit loop, center loop, and safety loop.
120 VAC Power – Built-in 120 VAC power receptacle (NEMA 5-15).
Motor Drive – Solid-State electronic motor drive system is incorporated into board.
Safety Alarm – If the gate hits an object twice while opening or closing, the system will shut down and alarm will sound for five minutes. After five minutes the system will automatically reset itself. To reset the system during the five minutes, a manual reset button must be used.
The CSW-200-UL™ is The most popular of all swing gate operating systems in the country. It is designed with a “non-scissor action†arm that will greatly reduce the chance of injury. This unit can handle gates up to
18' in length at 75 cycle per hour and is designed for high traffic applications such as heavily accessed
gated communities and commercial buildings. The CSW-200-ULâ„¢ is protected by a 1/4" thick, unbreakable polyethylene plastic cover for long life and lasting protection. This operator has proven to be one of the most reliable swing gate operators on the market for over a decade.
Elite’s operators are skillfully crafted in the USA. Every unit is carefully inspected both electronically and mechanically to provide the quality expected. Elite uses computer aided design to assure the most precise fit for their operator components. High quality and years of proven reliability places Elite CSW Series swing gate operators ahead of the competition.
Chassis – Constructed with 1.4" sanded, welded, and gold zinc plated sheet metal.
Worm Gear Reduction – Two 30-to-1 worm gears equal a 900-to-1 reduction. Both are lubricated in an oil bath.
Motor – 1/2hp, instant reversing, 120VAC, 4 amp,1625 rpm, high speed ball bearings.
Cover – High density polyethylene plastic and stainless steel for excellent heat and corrosion resistance.
Finishing – All metal parts are gold zinc plated for rust proof protection.
Emergency Release – The gate is easily disconnected by turning the release handle. The best option is our DC-1000U™.
Cycles – 75/hr. with 600 lb. gate.
Swing Arm –Non-scissor type arm action.
Output Shaft – 2 1/2" cold rolled steel.
Capabilities – Maximum gate length 18'. Maximum gate weight 600 lbs.
Gate Traveling Speed* – 90º opening in 13-15 seconds.
Dimensions – L20.5" X W15" X H28" ST model: L19" X W14" X H28"
Stainless Steel cover : 179 lbs.
Approval – ETL and UL Listed and compliant to UL325 and UL991 standards.
•To operate the gate manually, rotate the operator release handle 180°, then push the gate open.
•The CSW Series use a solid steel, machined pulley and notched v-groove belt for highly efficient torque transfer from motor to gear reducer.
•The 1/2 HP, instant reversing parking gate motor uses high speed ball bearings for a smooth and quiet operation.
•Two, highly efficient, extremely quiet, 30-to-1 gear reducers are used.
Duel gearboxes worm gear equals 900 to 1 ratio Heavy-duty #50 chain 3/4" X 1 3/4" cold rolled steel Gold zinc plating 1/4" sheet metal chassis Modular OmniControl board Operator release device. High density polyethylene plastic cover Limit switch device
The CSW-200-ULâ„¢ is manufactured with a precision limit switch system. This system uses high speed ball bearings and high quality components for efficiency and reliability. Most swing gate operator arms will cross
and produce a dangerous “scissor†action while opening the gate to a 90°opening, as shown in picture “Aâ€. We designed our CSW-200â„¢ operator arms to not cross, eliminating the scissor action as shown in picture “Bâ€. This feature reduces the risk of injury from the gate operator arm. the loop.
FEATURES OF THE CSW-200-ULâ„¢ SWING GATE OPERATOR
The digital current sensor continuously monitors the motor current. It can be set for both the opening and closing cycles. If the gate is closing and hits a vehicle, the sensor detects the increased load on
the motor and reverses. If the gate is opening and hits a vehicle, it stops and reverses 4 to 6 inches. The sensor is smart enough to operate on off-level installations and not to react to wind resistance.
This unique system allows precise, synchronized movement and communication between two gate operators using 3 wire RS-485 bi-directional technology. With the OmniControl board, Master/Slave conversion is now easier than ever.
Gate operator installations should be completed by a qualified installer only. Fast Access Security Corp. assumes no liability if product is installed incorrectly. Please see owners / installation manual for further details.
