Turck multi modul MK1-22UP-EX0/24VDC 2CH switching amp.

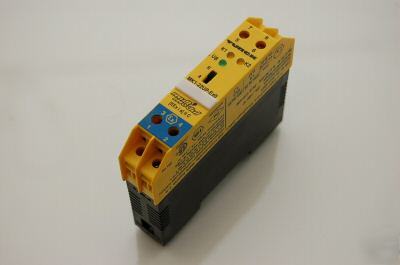

Click on picture for a larger image.
Turck Multi Modul MK1-22UP-Ex0/24VDC 2ch Isolating Switching Amplifier
The MK1-22UP-Ex0 is a dual channel device with intrinsically safe input circuits. It can be used in conjunction with sensors conforming to EN 50227 (NAMUR), variable resistors or potential-free contacts. It is equipped with two shortcircuit protected transistor outputs. The output function of both channels is selected by a switch located on the front cover. Switch positions A and R represent normally open mode (NO) and normally closed (NC) mode, respectively.
The amplifier has the following features:
* Dual channel switching amplifier
* Intrinsically safe input circuits [EEx ia] IIC
* GaIvanic isolation between input circuit, output circuit and supply voltage
* 2 short-circuit protected transistor outputs:
* Selectable NO/NC output function
* Mounts to top-hat rail (DIN 50022)
The amplifier has the following specifications:
* Model [Eex I a] II C MK1-22UP-Ex0/24VDC
* Supply voltage: 19 - 29 VDC
* Operating input Voltage: 8V
* Operating Input Current: 5mA
* Switching Threshold: 1.55mA
Click on the link below for more information on this amplifier:
Thanks for looking and let me know if you have any questions about the item, I will do my best to answer. The Turck Multi-Modul Amplifier is sold untested, but guaranteed Non-DOA with a 7 day Right Of Return.
