24AWG 11LB 8696FT essex magnet wire wind generator

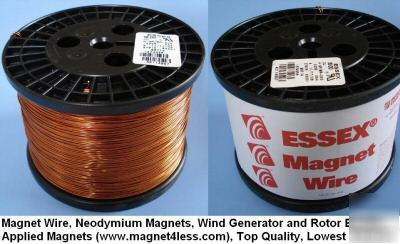

11LB Spool, 8696 Feet, 24 AWG, Premium Quality "ESSEX" Enameled Copper MW-35C Magnet Wire, High Temp. 200°C.
This is the "ESSEX" factory standard 11LB spool with original factory packaging!!!
This is NOT the respooled, OEMed or unknown origin magnet wire !!! (read below to see why repsooling is not recommended).
(Essex Group is the largest manufacturer of magnet wire in US.)
* 11 LB spool is the Standard Factory Spool Size and in the Original Factory Packaging, while smaller spools such as 6 LB spool (around 1193 feet) are respooled unprofessionally outside factory and is not covered by the Factory Warranty. Most importantly, respooling can easily damage or scrape the insulation film, damaged magnet wire can not be used for coil winding. why use smaller spools at your own risk ???
* 11 LB spool is the best deal. 11 lb spool's unit price per pound/feet is the lowest compared to smaller spool's unit price.
Solid Copper wire with a high grade MW-35C (polyester-polyamide/imide) insulation coating
High temperature Class 200C (392F)
ISO 9002 certified, UL listed magnet wire
Recommended wire size for 48 Volt Wiring in Hugh Piggott's 8' wind turbine plan.
Our magnet wire offers the heavy build insulation coating that is the combination of the modified polyester basecoat and amide-imide topcoat that provides an insulation system with outstanding toughness and dielectric properties. this magnet wire has improved voltage endurance and thermal properties compared to standard NEMA MW 35-C magnet wire, while retaining superior chemical resistance to common solvents and refrigerants. conforms to all of the requirements of NEMA MW 35-C.
Our magnet wire is classified as 200C on copper conductor, is UL listed 200C, and is recommended for NEMA MW 35-C wire applications with higher burnout requirements.
Our magnet wire has excellent thermoplastic flow (cut through) properties, with typical test values in excess of 390C.
Our magnet wire has been extensively wound in various motor applications and has been highly commended for its superior windability performance and it is by far the softest and most flexible inverter wire on the market.
Our magnet wire offers superior abrasion resistance over all other inverter wires. Abrasion resistance protects the wires from nicks and scratches that could result in shorting of the motor.
* Conforms to all of the requirements of NEMA MW-73C and MW-35C.
* Thermal Rating: 200°C (392°F).
* Insulation type: polyester-polyamide-imide, polyester basecoat, polyamide-imide topcoat.
* Insulation build: heavy build, more durable than single/double builds.
* Nominal Wire Weight: 11 lbs
* Trusted and reliable global wind turbine parts distributor and supplier.
* Honesty and trustworthiness are our #1 priority.
* Proven track record and excellent reputation.
Need Neodymium magnets for wind generator, wind turbine blades or other parts ?
please visit our store inventory to purchase.
Motors, wind generators, Power tools, alternators.
Transformers: All dry type, Class 105 through 200, Control Type.
Electronic coils, Class 105 through 200.
