Atmel avr prototype board ATMEGA8515 ATMEGA162

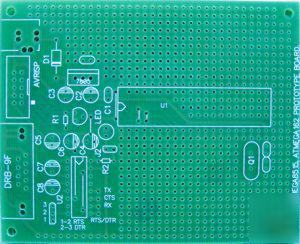

AVR-P40-8515 AVR MICROCONTROLLER PROTOTYPE BOARD FOR 40 PIN DEVICES WITH STKxxx COMPATIBLE 10 PIN ICSP
* ICSP 5x2 pin connector for in-circuit programming with AVR ISP
* Voltage regulator +5V 7805 and filtering capacitors
* Quartz crystall oscilator circuit
* DIL40 microcontroller socket
* RS232 DB9 female connector
* RS232 MAX232 interface circuit with Tx, Rx, CTS, DTR/RTS signals
* Extension slot on every uC pin
* FR-4, 1.5 mm (0.062"), green soldermask, white silkscreen component print
* four mounting holes 3.3 mm (0.13")
* dimensions 100x80 mm (3.9x3.15")
Supported devices: ATMEGA8515, ATMEGA162
1mkF x 16V (Polarity of capasitors: + pin square pad, - pin round pad)
