Bbc boveri brown logic card gh r 421 0001 R1 062 037 65

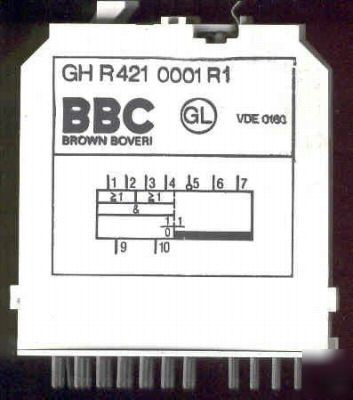

GH R 421 0001 R1 Store (set / reset) Gate
Made by BBC Brown Boveri. It was sold under the Sigma-Tronic B system for Industrial controls.
This is a used, and tested card in good condition.
With a 3 month RTB (Return To Base) Warranty.
The store 421 card consists of a statically operating bistable trigger stage and series connected logical functions.
basically this is a set reset memory function, i.e.
(1 or 2) & (3 or 4) sets output, No5 & 6 & 7 Resets output
Tech Data: Current consumption: Reset store = 6mA Set store = 18mA
The operating voltage for the sigma-Tronic system is 24v d.c. (with a tolerance of 30% i.e. 16.8v to 31.2v a ripple up to a peak amplitude of 4v is permissible)
Other part numbers used for this part are:
GH R421 GHR421 GH-R-421 GH-R 421 GH R-421 GHR 421 and 062 037 65
These modules are also ideal for small DIY logic projects (such as model railway control or hydraulic control) as they do not require a programmer or software. Also the logic circuit can be added to as required.
I have only listed the common logic blocks but if you need a particular BBC card that is not in my shop please e-mail for availability and price.
