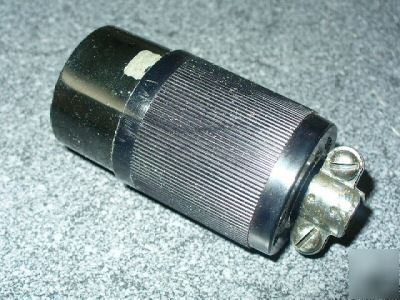

Connector,plug,electrical
OVERALL LENGTH - 1.656 INCHES NOMINAL
DIAMETER - 1.125 INCHES NOMINAL
OVERALL DIAMETER - 1.171 INCHES NOMINAL
CONNECTOR LOCKING METHOD - CONTACT TWISTLOCK
CONNECTOR CABLE STRAIN RELIEF METHOD - CABLE CLAMP
CABLE ENTRANCE DIAMETER - 0.421 INCHES MAXIMUM
CONTACT POSITION ARRANGEMENT STYLE - ADBW 3-50 SINGLE MATING END
INSERT MATERIAL - PLASTIC PHENOLIC SINGLE MATING END
INSERT MATERIAL DOCUMENT AND CLASSIFICATION - MIL-M-14,TYPE CFG MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END
INCLUDED CONTACT QUANTITY - 1 SINGLE MATING END 1ST CONTACT GROUPING, 2 SINGLE MATING END 2ND CONTACT GROUPING
CONTACT REMOVABILITY - NONREMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT MAXIMUM CURRENT RATING IN AMPS - 15.0 SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS - 125.0 SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS - 125.0 SINGLE MATING END ALL CONTACT GROUPINGS
